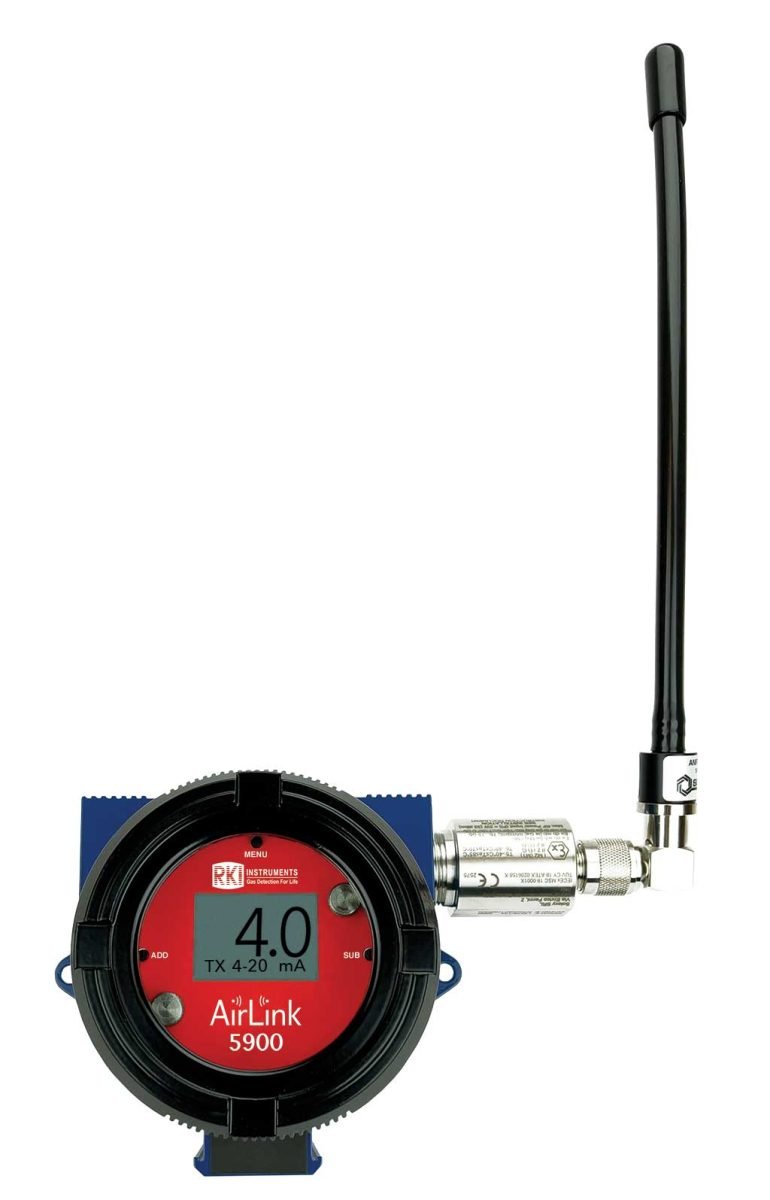

RKI AirLink 5900 Analog to Wireless Converter
Analog to Wireless Converter
Features
- Convert any 4-20mA signal to wireless
- Wireless communication
◦ 900 MHz radio and 52 networks
◦ 2.4 GHz radio and 78 networks - Operating voltage: 12V to 35V
- Graphical LCD with LED backlight, readable in sunlight
- 3 Push-button interface (ADD, MENU, SUB) with 3 corresponding magnetic, non-intrusive switches
- Aluminum enclosure
- Connectivity with any 4-20 mA sensor
- 1-Year warranty
Description
AirLink 5900 Datasheet [PDF]
AirLink Brochure [PDF]
AirLink 5900 Manual [PDF]
The AirLink 5900 converts any 4-20 mA signal into a wireless signal including gas, flame, tank level and many other sensor types. The AirLink 5900 is wire-powered operating from 12 to 35 Volts DC. Magnetic switches allow for non-intrusive controls of full system settings and diagnostics.
The AirLink 5900 Analog to Wireless Converter represents the latest leading edge wireless technology in fixed gas detection today.
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
Application
- Petrochemical plants, refineries
- Water & wastewater treatment plants
- Pulp & paper mills
- Manufacturing facilities
- Chemical plants
- Construction
- Temporary or permanent applications
Specifications
| Sensor Type | 4-20 mA Signal transmitter | ||
| Operating Voltage | 12V to 35V DC | ||
| Power Type | Wire powered | ||
| RF Connection | External N-female radio frequency (RF) connector | ||
| Display Screen | 102×64 Resolution graphical LCD screen transflective (sunlight readable) with LED backlight | ||
| Interface | 3 Push-buttons (MENU, ADD and SUB)
3 Magnetic non-intrusive switches for calibration (MENU, ADD and SUB) |
||
| Customizable Settings | Transmits a 4-20 signal or scale up to 30,000 adjustable communication transmission on change setting |
||
| Temperature Range | -40°C to +54°C | ||
| Wireless Radio Options | 900 MHz radio or 2.4 GHz | ||
| Networks | 52 Networks (900 MHz radio) or 78 networks (2.4 GHz radio)
255 addresses per network |
||
| Product Dimensions | 5.42 in. L x 6.03 in. D x 12.16 in. H (Max. dimensions with attachments) | ||
| Total Weight | 4.8 lbs. | ||
| Hazardous Location
Approvals |
Main Enclosure | ATEX
Models with radio option II 2 (1) G Ex db mb ia [ia Ga IIB T6 Gb Ta= -40°C to +54°C |
CSA
Class I, Div 1, Groups C & D Ex db IIB T6 Gb Class I, Zone 1, AEx db IIB T6 Gb Tamb -40°C to +54°C |
| Compatible Controllers | AirLink 7010, AirLink 7032, and AirLink 7543 | ||
| Warranty | 1-Year limited | ||
