Description
PRODUCT CHARACTERISTICS

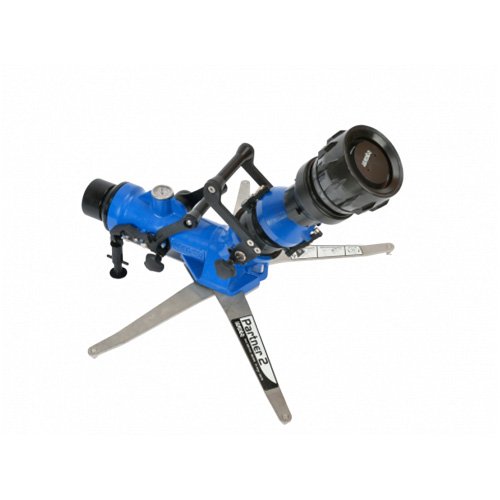

Lightweight (only 22.5 lbs) and compact, PARTNER 2 is deployed in seconds. It has a flow rate of up to 750 GPM.
PARTNER 2 is equipped with a safety valve that reduces the flow rate in order to protect the firefighters while avoiding any excessive water hammer.
PARTNER 2 is also available in an oscillating version with an automatic sweep and adjustable amplitude of 20° to 40°.
Very low maintenance due to its very robust design and materials used.
Additional information
| Weight | |
|---|---|
| Flow Rate | |
| Pressure | |
| AVAILABLE INLETS |
2.5″ NH F 2.5’’ NH F |
| SWIVEL |
2.5’’ NH F |
| Material | |
| DIMENSIONS W X D X H |
Retracted – 20″ x 9.5″ x 12.6″ Extended – 25.2″ x 25.6″ x 12.6″ |
| SAFETY VALVE |
yes |
| PRESSURE GAUGE PROTECTED |
yes |
| VERTICAL ELEVATION |
up to 85° (from 25°) |
| HORIZONTAL ORIENTATION |
-20 to + 20° |
| Oscillation | |
| CONVERTIBLE |
no |
