Transformer Piercing Nozzle System – 1.5″ NHF Inlet, Bag Included
$1,192.10
1.5″F COUPLING

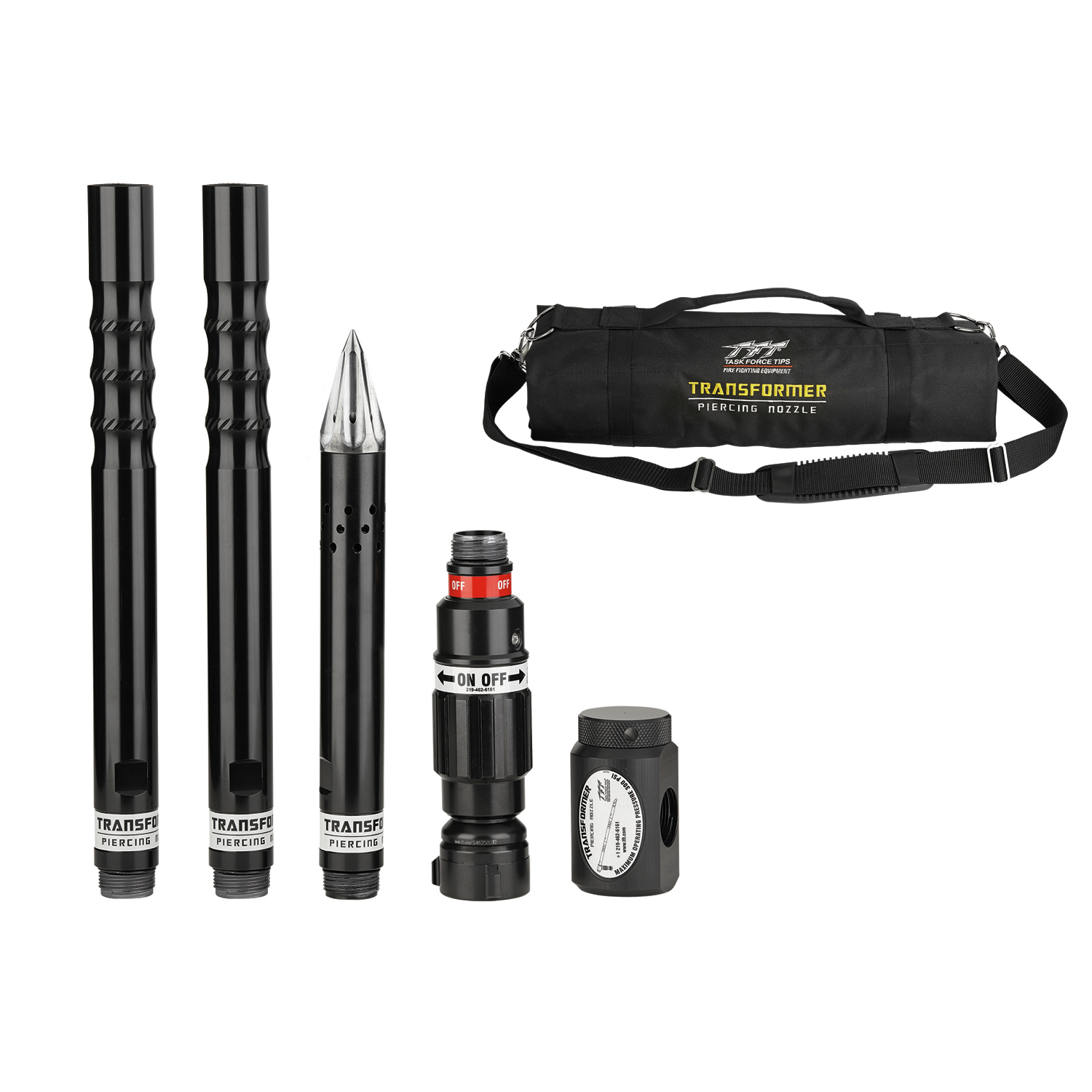

The Task Force Tips Transformer PA1 Piercing Nozzle System is designed to deliver water or foam solutions to areas inaccessible to the fire fighter. A series of jets near the point apply a wide reaching pattern at a rated flow of 570 l/min at 7 bar (150 gpm at 100 psi). The PA1 system includes a unique twist-grip shutoff valve, a 3 port junction block with striking head, 2 extension tubes, and the flow tube with piercing point. The easy to use and rugged, twist-grip shutoff valve, regulates nozzle flow without the need for an additional shutoff valve. The 3 port junction block and striking head allow the nozzle to be configured to short, medium, long and L shaped combinations, making it easily adaptable to specific fireground situations. The PA1 system features a hardened steel piercing point, all extension tubes and valve are constructed of hard coated extruded aluminum, and a sturdy nylon carrying bag with compartments for each component is included. All Prices in USD
The Task Force Tips Transformer Piercing Nozzle System is a specialized tool engineered for targeted water delivery into concealed spaces. This 1.5″ NHF inlet system is designed to provide effective suppression where direct access is challenging.
- Delivers a consistent 150 GPM (570 LPM) at 100 PSI (7 Bar), ensuring predictable application for fire control behind barriers.
- Equipped with a twist grip valve for precise water control, allowing immediate activation or shut-off as operational needs dictate.
- Features a full-time swivel 1.5″ NHF rocker lug inlet, significantly improving hose handling, reducing kinks, and facilitating rapid, secure connections.
- Its robust 13.450 lb construction is engineered for demanding fireground conditions, supporting the forceful insertion required for piercing operations.
- The complete system includes a durable bag, ensuring organized transport and protection, ready for immediate deployment.
This Transformer Piercing Nozzle System is an essential asset for industrial and municipal fire departments, enabling firefighters to address fires in attics, voids, and containerized situations with controlled efficiency and reliability.
| Weight | 13.45 lbs |
|---|---|
| Color | |
| Nozzle Valve Style |
Twist Grip |
| Nozzle Teeth |
None |
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
150 GPM |
| Target Nozzle Flow (Met) |
570 LPM |
| Target Nozzle Pressure (Bar) |
7 Bar |
| Nozzle Type |
Fixed |
| Inlet Coupling Style | |
| Inlet Coupling Swivel | |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
NH Female |
| Nozzle Hose Coupling Style |
Rocker Lug |
| Nozzle Hose Coupling Swivel |
Swivel |
| Target Nozzle Pressure (PSI) |
100 PSI |
