Description
PRODUCT CHARACTERISTICS

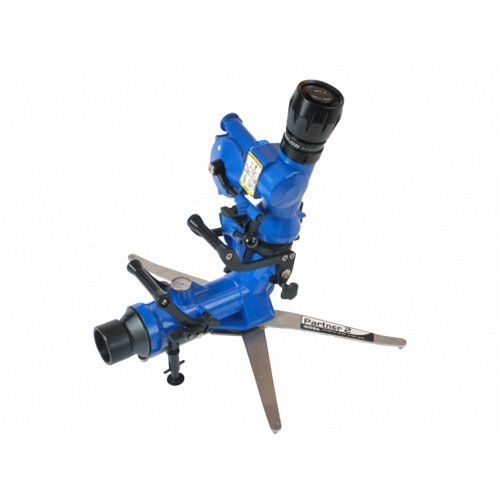

Lightweight (only 30.5 lbs) and compact, PARTNER 2 OSC is deployed in seconds. It has a powerful flow rate of up to 750 GPM.
PARTNER 2 is equipped with a safety valve that reduces the flow rate in order to protect the firefighters while avoiding any excessive water hammer.
PARTNER 2 OSC is equipped with an oscillating system that allows automatic sweep with an adjustable amplitude of 10° to 40°.
Very low maintenance due to its very robust design and materials used.
Additional information
| Weight | |
|---|---|
| Flow Rate | |
| Pressure | |
| AVAILABLE INLETS |
2.5″ NH F |
| SWIVEL |
2.5’’ NH F |
| Material | |
| DIMENSIONS W X D X H |
Retracted – 30″x 14.2″ x 14.2″ Extended – 28″x 25.6″ x 14.2″ |
| SAFETY VALVE |
yes |
| PRESSURE GAUGE PROTECTED |
yes |
| VERTICAL ELEVATION |
up to 85° (from 25°) |
| HORIZONTAL ORIENTATION |
-20 to + 20° |
| Oscillation | |
| CONVERTIBLE |
no |
