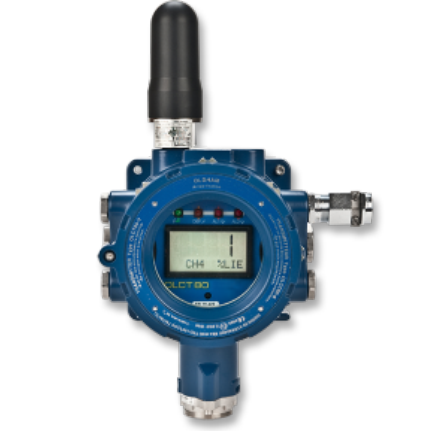

OLCT 80W Wireless Gas Detector
Teledyne Gas and Flame Detection is proud to introduce its wireless system with the OLCT 80 field detector/transmitter. This new model allows wireless connectivity in ATEX 1 zones. The maximum range is 3km, line of sight. The type of network selected will depend on the number of field detectors, the area coverage and the network architecture.
Signal Processing
OLCT 80W is ideal for transmitting signal data in a wide range of industrial detection and alarm system applications. Transceiver operates at a universally accepted frequency of 2.4 GHz / 900 MHz and is able to transmit signal data from its analog or Modbus outputs. The wireless version of the OLCT 80 eliminates wiring costs and is very easy to commission in the field. The device can be associated with our MX 43 control panel, touch screens and audible or visible alarms. Wireless network integrity, security and reliability are guaranteed by using FHSS technology (Frequency Hopping Spread Spectrum).
- Frequency 2.4 GHz (EU) / 900 MHz (USA)
- Low Power Requirement
- Up to 3 km Line-of-Sight Range
- Robust Mesh Network Topology
- Up to 49 devices per network
- Flexible Input/Output options (analog, on/off, Modbus RS485)
-
Certification Description ATEX A product regulation which ensures the safety of equipment intended for use in potentially explosive atmospheres in the European Union. -
CE indicates that a product has been assessed by the manufacturer and deemed to meet EU safety, health and environmental protection requirements. -
China Ex Testing and certifications providers in China -
EAC Gost R and EAC certifications are mandatory in order to have access at all to the Russian market and the markets of the five EAC members
-
Symbol Description Toxic Gas AsH₃ Arsine Gas Detectors -
C₂H₂ Acetylene -
C₂H₄ Ethylene -
C₂H₄O Ethylene Oxide -
C₂H₆ Ethane -
C₂H₆O Ethanol -
C₃H₆ Propylene -
C₃H₆O Acetone -
C₃H₈O Isopropyl Alcohol -
C₄H₁₀O Isobutanol -
C₄H₆ Butadiene -
C₄H₈O Methyl Ethyl Ketone (MEK) -
C₅H₁₂ Pentane -
C₆H₁₄ Hexane -
C₆H₆ Benzene -
C₇H₈ Toluene -
C₈H₁₀ Xylene -
CH₂₀ Formaldehyde -
CH₃OH Methanol -
COCl₂ Phosgene -
Combustible % LEL Combustible Percent Lower Explosive Limit (LEL) -
F₂ Fluorine -
N₂H₄ Hydrazine -
VOC Volatile Organic Compound
