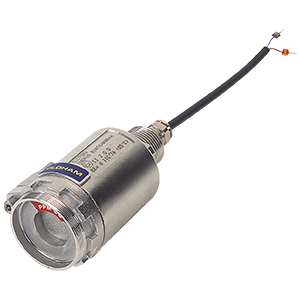

OLCT 20 – OLC 20 Fixed Gas Detector
The stainless steel detector provides protection and resistance to corrosive agents. Classified IP 66, they are resistant to dust and water ingress. The precalibrated sensors of the OLCT 20 can be disconnected by turning the head of the unit. These “smart” sensors can be calibrated on a work bench, outside hazardous areas.
OLC 20 Detector with a Wheatstone bridge output:
The generation of OLC 20 combustible sensors are unaffected by poisons. The units provide extremely quick response times and complete reliability.
OLCT 20 Transmitter with 4-20mA output:
The OLCT 20 sensor units, which are equipped with pre-calibrated sensors (flammable, toxic or oxygen), are classified as flameproof or intrinsically safety according to your needs or the gases detected. As in the case of the OLC 20, they are fitted on the housing by a M25 or 3/4″ NPT thread.
- Designed for indoor or outdoor monitoring
- Complete reliability
- Can be fitted on a housing with a M25 or 3/4” NPT thread
- Stainless steel detector provides protection and resistance to corrosive agents
- The precalibrated sensors can be disconnected by turning the head of the unit
-
Certification Description ATEX A product regulation which ensures the safety of equipment intended for use in potentially explosive atmospheres in the European Union. -
CE indicates that a product has been assessed by the manufacturer and deemed to meet EU safety, health and environmental protection requirements. -
China Ex Testing and certifications providers in China -
EAC Gost R and EAC certifications are mandatory in order to have access at all to the Russian market and the markets of the five EAC members
-
Symbol Description Toxic Gas AsH₃ Arsine Gas Detectors -
C₂H₂ Acetylene -
C₂H₄ Ethylene -
C₂H₄O Ethylene Oxide -
C₂H₆ Ethane -
C₂H₆O Ethanol -
C₃H₆ Propylene -
C₃H₆O Acetone -
C₃H₈O Isopropyl Alcohol -
C₄H₁₀O Isobutanol -
C₄H₆ Butadiene -
C₄H₈O Methyl Ethyl Ketone (MEK) -
C₅H₁₂ Pentane -
C₆H₁₄ Hexane -
C₆H₆ Benzene -
C₇H₈ Toluene -
C₈H₁₀ Xylene -
CH₂₀ Formaldehyde -
CH₃I Methyl Iodide -
CH₃OH Methanol -
COCl₂ Phosgene -
Combustible % LEL Combustible Percent Lower Explosive Limit (LEL) -
Combustible % Vol -
F₂ Fluorine -
HF Hydrogen Fluoride -
N₂H₄ Hydrazine -
VOC Volatile Organic Compound
