Life Detector Device With Seismic Sensors for Search
Detection and location of victims buried under rubble thanks to seismic technology, and able to establish communication with them!
product characteristics

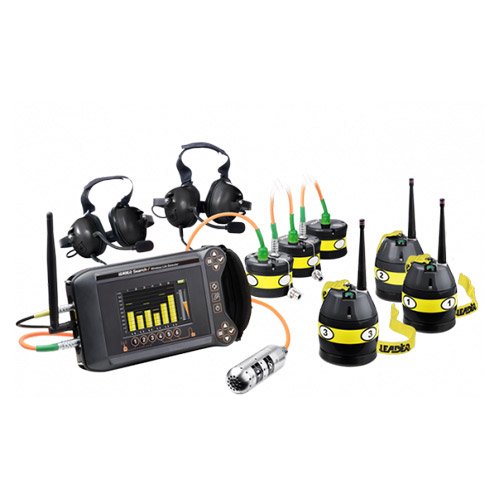

Leader SEARCH is a life detection device used during rescue operations following disasters. The wireless or wired seismic sensors detect the signs of life (vibration detection) under the rubble and then locate the victims in a precise way.
It is possible to connect up to 6 seismic sensors to detect the different sounds coming from the victims: scratching, hitting, screaming, etc.
- Connection of up to 3 wireless sensors with a range of over 330ft each in open field.
- Connection of up to 3 wired sensors with 26ft of cable each.
Once the victim is located, the waterproof wired communication probe of LEADER Search allows dialogue with the victim to assess what help is required.
| Modes | |
|---|---|
| SPARE BATTERY PACK |
Supplied additionally for use when needed with 10 AAA batteries |
| NUMBER OF WHEELS |
2 |
| WATER AND DUST RESISTANCE |
IP67 |
| LOADED CASE WEIGHT |
58.4 lbs. |
| EMPTY WEIGHT |
15.4 lbs. |
| VALVE | |
| TRANSPORT |
Suitable for air transport (integrated pressure equalising |
| Material | |
| MICROPHONE |
Built-in to communicate in search camera mode |
| MONO OR STEREO |
Stereo |
| Power Supply |
Wireless sensor: 3 AAA alkaline batteries – LR03 Wired sensor: Powered by the control box |
| FREQUENCY |
2.4 GHz |
| Range |
Wireless sensor: 330ft in unobstructed space wired sensor: 26ft of cable |
| NUMBER OF INTERCONNECTIONS |
1 or 2 or 3 wireless sensors + 1 or 2 or 3 wired sensors |
| COMPATIBILITY |
Interchangeable with LEADER Search, LEADER Cam and LEADER Scan |
| TECHNOLOGY |
Seismic Sensors |
| RECHARGING CYCLES |
500 |
| Charging Time |
3.5 h |
| Weight | |
| MEMORY CARD |
Slot for micro SD card for recording photos and videos |
| WIRELESS TRANSMISSION |
Antenna for interconnection of wireless seismic sensors (up to 330ft in unobstructed space) |
| CONNECTIONS |
Up to 2 headphones, Camera and Antenna |
| START TIME |
<1 minute |
| AUTONOMY |
Wireless sensor: Approx. 8 hours depending on battery brand Wired sensor: Control box autonomy |
| SCREEN PROTECTION |
Transparent thermoplastic |
| SCREEN |
TFT LCD, 7’’ – 800 x 480 px WVGA |
| Weight with Battery | |
| Dimensions | |
| Features |
Adjustable anti-noise filters (high-pitched/low-pitched noise filter) , , , ,Seismic monitoring: Individual control of each sensor from control box , |
| INTERNAL PROTECTION |
Device contained in a backpack ready to wear (to avoid the weight of the case) |
