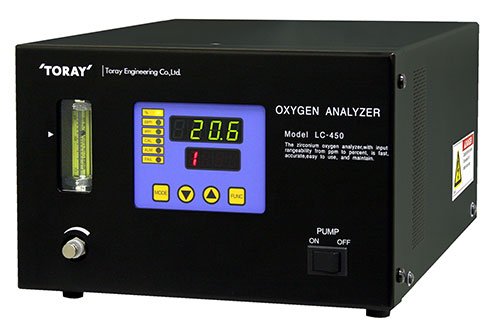

Toray LC-450A Oxygen Analyzer
High Precision Oxygen Analyzer
Summary of Features:
• Excellent repeatability and accuracy
• Highly Durable Sensor
• Fast response
• Wide measurement range
• Easy, flexible installation
See for more information.
Description
Overview
The Toray LC-450A is a compact oxygen analyzer designed for monitoring oxygen content from low ppm range up to 100% Volume Oxygen. This analyzer uses a specially treated oxygen sensor for increased durability, high precision and long life. This compact analyzer is easily mounted in tools for the manufacturing of semiconductor and liquid crystal devices.
The LC-450A oxygen analyzer has a pump driven system for in-line use that requires AC power. The LC-450D model, powered by DC is also available.
Additional Details
| Type | Portable / Panel Mounted |
|---|---|
| Display system | Digital 4 Digits (Concentration Display) |
| Measurement range | 0.1ppm?100vol%O2 Display: Auto range or 4 Ranges Recorder: 0-10/100/1000ppm/100% Available for any combination of the following ranges. 1/10/100/1000/10000ppm 1/10/100%, 10-20-10-0atm ? 1ppm range and atm range is the reference value (No guarantee) |
| Sampling system | Continuous Suction by Built-in Pump |
| Supply gas | Approx. 1.5L/min |
| Gas sensor | 60±10mL/min |
| Gas connection | INLET(Sample gas inlet) Rc1/4 BYPASSOUT(Bypass outlet) Rc1/4 OUTLET(Sample gas outlet) Rc1/4 |
| Recorder output | External output: DC 0-10 V DC 4-20 mA Range marker: BCD, 3 contact outputs (Contact capacity: DC 24 V, 0.3 A) |
| Reference Gas | Atmospheric Gas |
| Dimensions | 210(W)×134(H)×300(D) |
| Weight | Approx. 6kg |
| Color | Mat Coating(Black) |
| Power supply | 100?240VAC (35VA, Stationary time) |
