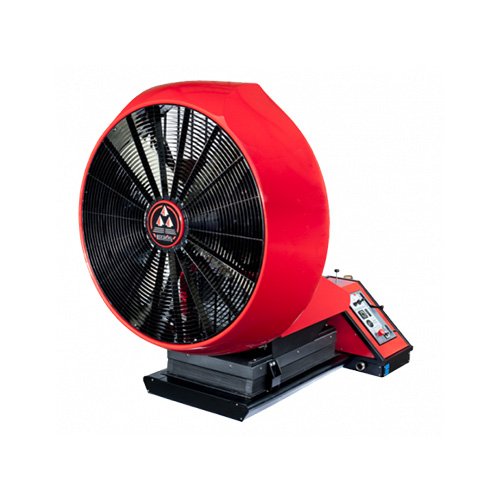

Large-flow ventilator EASY 4000 on Skid 234,430 cfm Open Air
Perfect for ventilation of very large volumes like tunnels, industrial sites, airport halls, etc.
PRODUCT CHARACTERISTICS
A true mobile solution for very large volume ventilation, EASY 4000 large-flow ventilator has a flow rate of 234,430 cfm Open Air. It allows smoke removal and cooling of very large volumes such as tunnels, industrial sites, very high-rise buildings, airport
halls, industrial complexes and exhibition centres.
| Open air flow |
234,430 cfm |
|---|---|
| TANK |
11 gallons |
| Ventilation type |
PPV |
| Noise level |
96 dB at 23 ft |
| BATTERY |
Rapid charge 12V / 15 Ah battery to power the electrical equipment |
| OIL |
Engine oil: 3.8 l – API SL Hydraulic oil for lifting option: 0.9 l – ISO32 |
| AUTONOMY |
1h40 |
| FUEL |
Unleaded petrol SP95 |
| ENGINE POWER |
115 HP |
| Weight |
Without elevation: 820 lbs Elevation 23.6″ : 1042 lbs Elevation 47.2″ : 1142 lbs |
| Engine |
BMW Flat Twin – 1170 cm³ with electronic control – 2 cylinders – 4-stroke. |
| MISTING SYSTEM |
For water or water+additives – 65 GPM at 100 PSI |
| WIRED REMOTE CONTROL |
yes |
| ENGINE CONTROL PANEL |
yes |
| SUPPORT |
Steel chassis painted in black epoxy (all delivered on pallet) |
| Propeller diameter |
47.2″ |
| DIMENSIONS W X H X D |
Without elevation: 71.2″ x 63.7″ x 58″ Elevation 23.6″ : 71.2″ x 70.4″ to 94″ x 66.53″ Elevation 47.2″ : 71.2″ x 75.7″ to 122.9″ x 58″ |
| Application |
