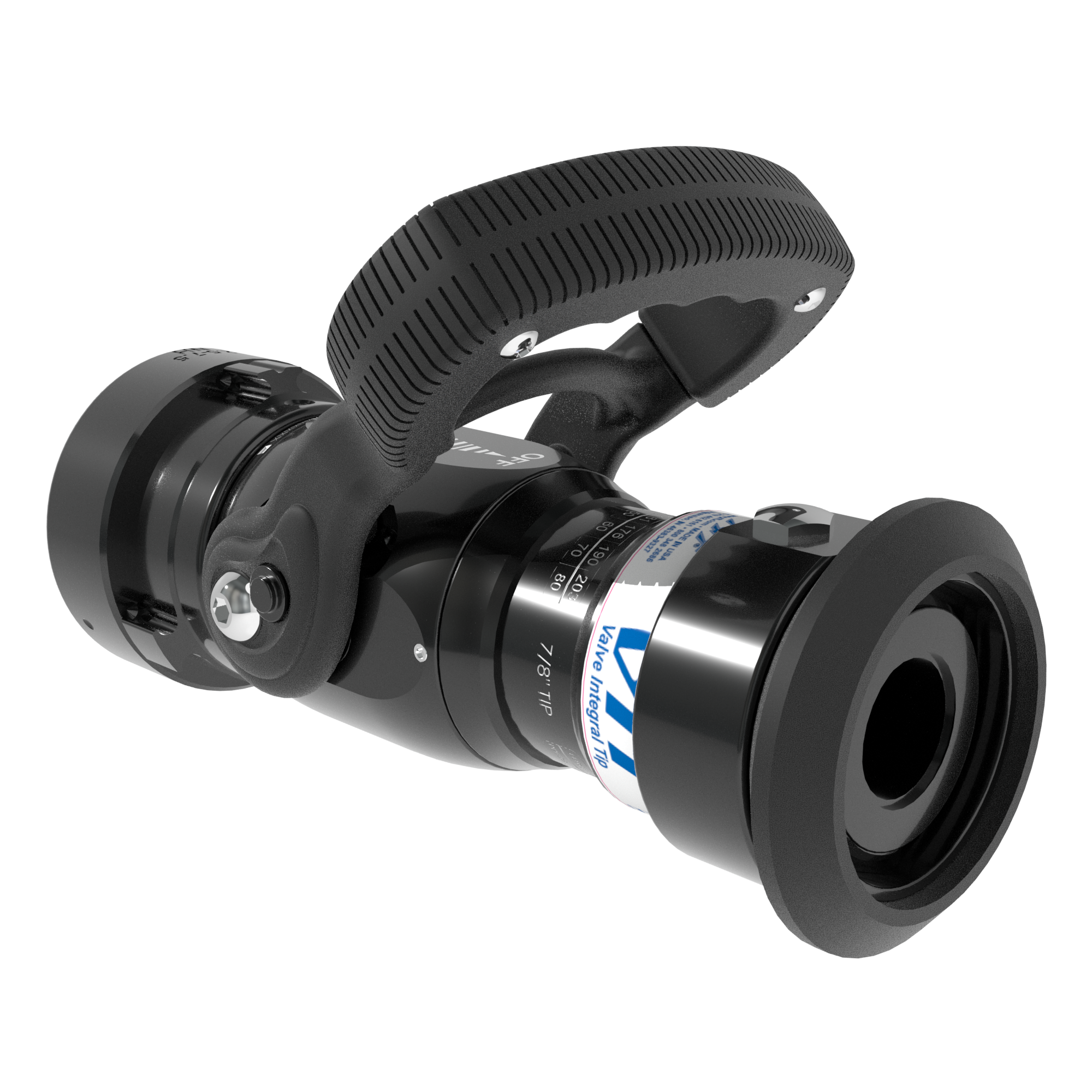

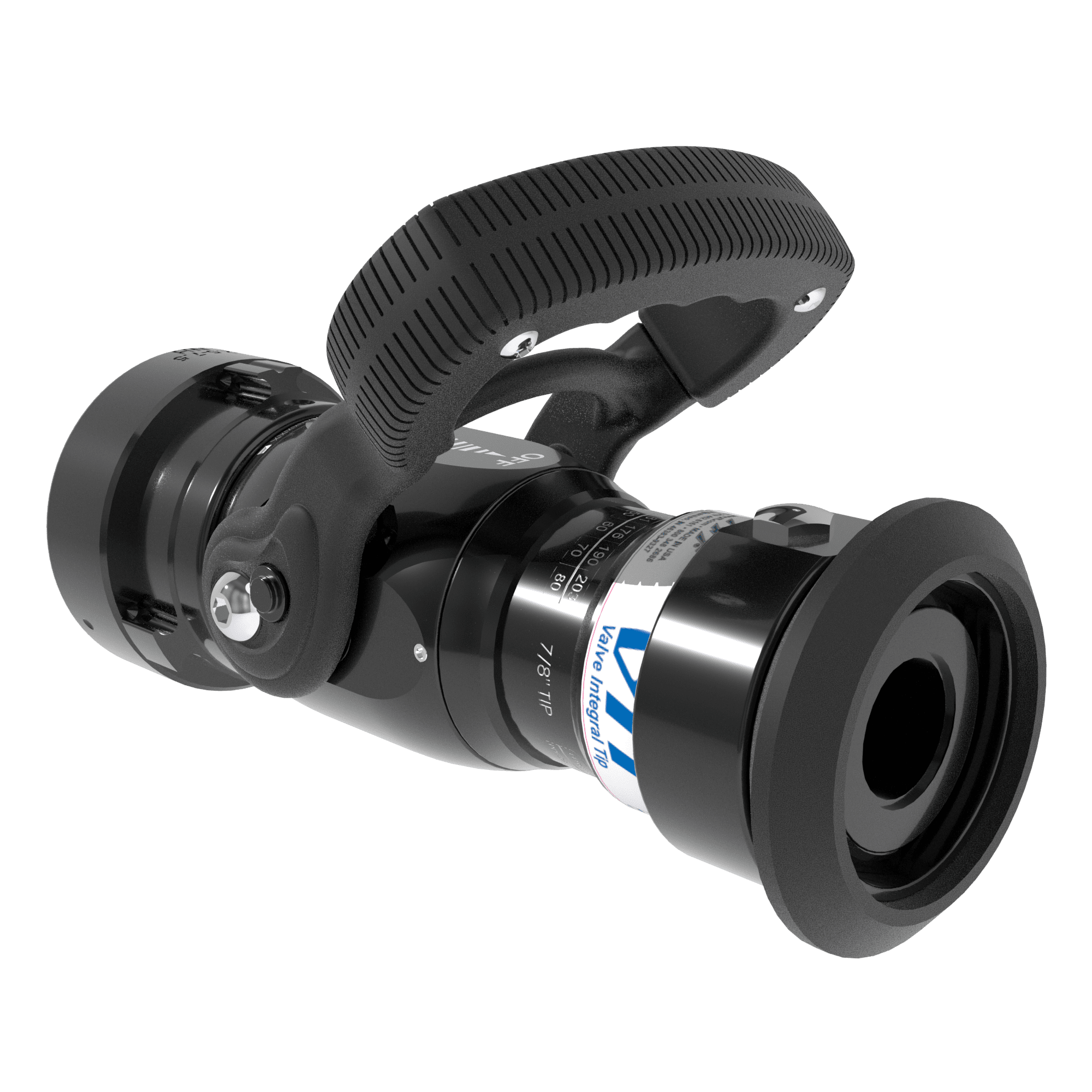

VALVE INTEGRAL TIP 1-1/4″ DIA
$657.15
2.5″F INLET X 1.5″M OUTLET
Separate ball-type shutoff valve for use with tip only nozzles. Use the valve as a smooth bore at the selected outlet diameter. Six detent flow positions. Colored handle covers available. 2.5″ NH (65 mm) rocker lug full-time swivel inlet coupling and 1.5″ NH (38 mm) male outlet standard. All lightweight materials are used. All Prices in USD
The Task Force Tips VIT Valve Integral Tip™ 1-1/4″ DIA is engineered for demanding handline operations. It integrates a fixed-bore discharge with robust flow control, specifically designed for deployment on 2.5″ (65 mm) hose lines.
- Effortless Deployment: A full-time swivel inlet coupling facilitates quick, tangle-free hose connection and precise positioning, essential for rapid fire attack.
- Robust Construction: The durable metal-aluminum bumper provides enhanced protection against impact and abrasion, extending operational life in challenging environments.
- Consistent Stream Delivery: Featuring a 1.25″ (32 mm) outlet diameter, this integral tip delivers a reliable, focused stream for effective reach and penetration.
- Optimized Handling: Weighing only 3.900 lbs, its manageable weight contributes to reduced firefighter fatigue during extended operations.
- System Versatility: Equipped with 2.5″ (65 mm) NH Male outlet threads, this unit allows for direct attachment of supplementary nozzles or appliances, enhancing operational flexibility.
The VIT Valve Integral Tip™ 1-1/4″ DIA offers reliable performance as a standalone fixed-tip handline discharge or as a foundational control valve for modular nozzle setups. Its design prioritizes operational efficiency and equipment integration on the fireground.
| Brand | |
|---|---|
| Weight | |
| Nozzle Type |
Handline Nozzles |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Outlet Diameter | |
| Bumper Material | |
| Inlet Connection Type | |
| Nozzle Style |
VIT |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
2.5" |
| Nozzle Hose Size (Met) |
65 mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Swivel |
| Nozzle Outlet Size (Imp) |
2.5" |
| Nozzle Outlet Size (Met) |
65 mm |
| Nozzle Outlet Type |
NH Male |
| Nozzle Outlet Style |
Male Threads |
| Nozzle Outlet Swivel |
Rigid |
| Nozzle Inlet Size (Imp) |
2.5" |
| Nozzle Inlet Size (Met) |
65 mm |
| Nozzle Inlet Connection Type |
NH |
| Nozzle Inlet Coupling Style |
Rocker |
| Nozzle Inlet Coupling Swivel |
Swivel |
