VALVE INTEGRAL TIP 1-1/8″ DIA

$638.30

1.5″F INLET X 1.5″M OUTLET

Separate ball-type shutoff valve for use with tip only nozzles. Use the valve as a smooth bore at the selected outlet diameter. Six detent flow positions. Colored handle covers available. 1.5″ NH (38 mm) rocker lug full-time swivel inlet coupling and 1.5″ NH (38 mm) male outlet standard. All lightweight materials are used. All Prices in USD

SKU: HVIT14 Category: Brand
Description

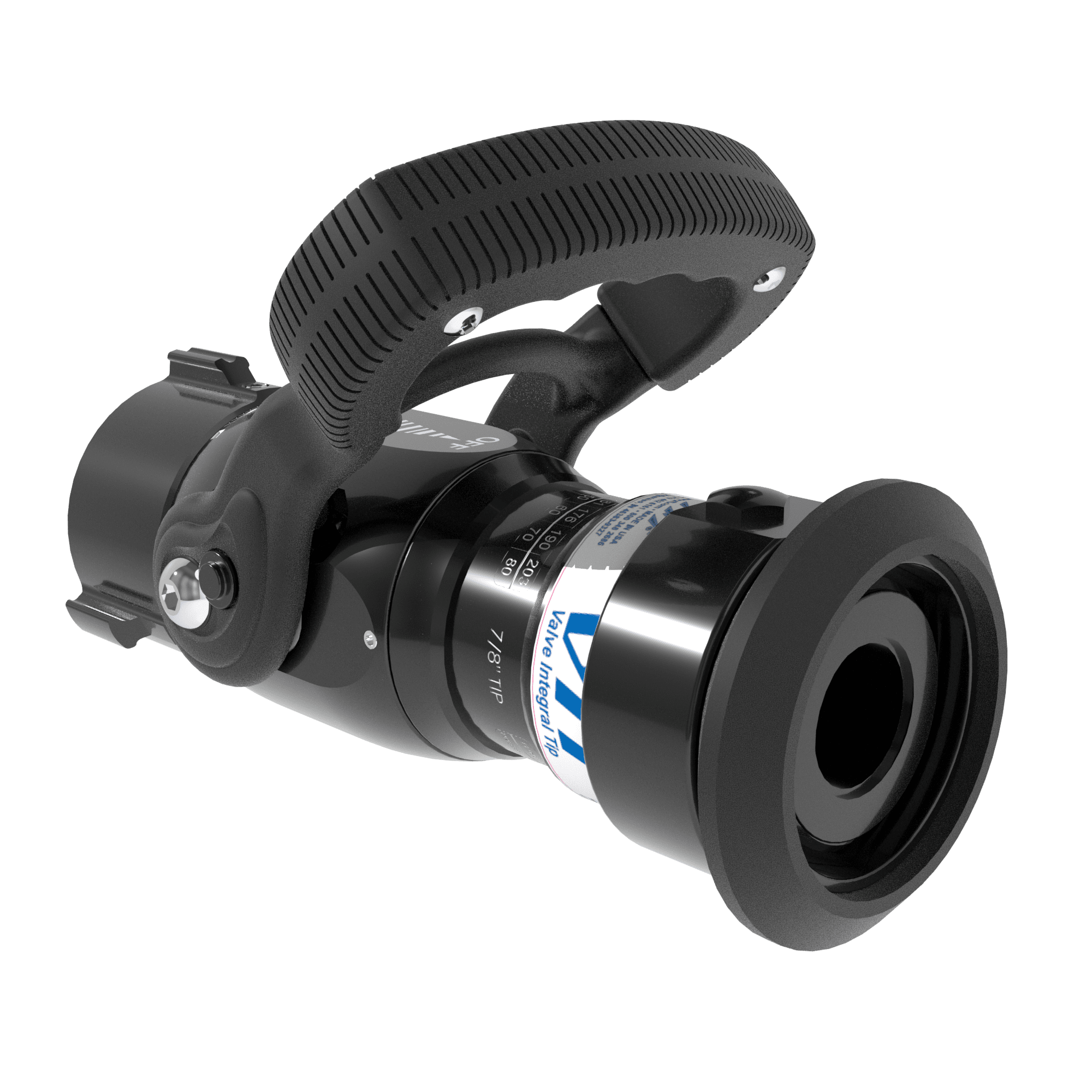

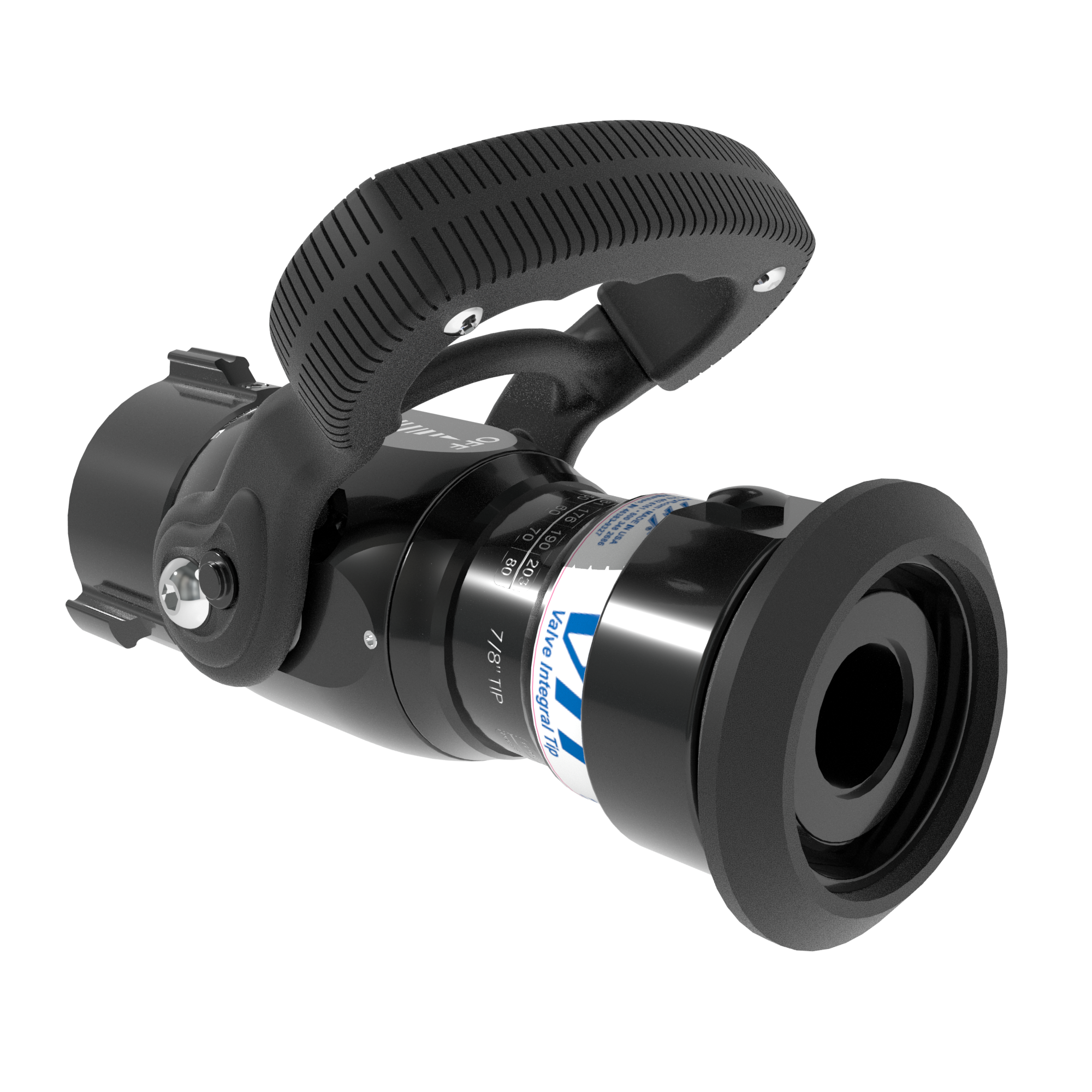

The Task Force Tips VIT Valve Integral Tip™ 1-1/8″ DIA delivers a robust, controlled stream for handline operations. This integrated unit combines a durable valve with a fixed 1-1/8 inch (28 mm) diameter tip, providing a compact and efficient solution for demanding fireground scenarios where precise water application is critical.

  • The substantial 1-1/8 inch (28 mm) outlet diameter is engineered to produce a concentrated stream, optimizing reach and material penetration for effective extinguishment.
  • An integrated full-time swivel inlet coupling on the 1.5″ (38 mm) NH female connection significantly reduces hose kinking and twisting, enhancing firefighter mobility and ensuring swift, unobstructed water flow.
  • Featuring a resilient metal aluminum bumper, the tip is fortified against operational impacts and abrasions, contributing to extended equipment durability under arduous conditions.
  • Weighing in at a manageable 3.300 lbs, this VIT Valve Integral Tip™ assembly maintains a lightweight profile, aiding in handling and reducing fatigue during sustained deployment.
  • The 1.5″ (38 mm) NH male threaded outlet provides adaptability for connecting additional equipment or specialized stream shapers, expanding operational flexibility.

Designed for professional firefighters and industrial teams, the integral design of the Task Force Tips VIT Valve Integral Tip™ simplifies equipment configuration and enhances operational control on 1.5-inch handlines, proving its value in both offensive and defensive strategies.

Additional information
Brand

Weight

Nozzle Type

Handline Nozzles

Inlet Coupling Style

Body Size

Inlet Coupling Swivel

Outlet Diameter

Bumper Material

Inlet Connection Type

Nozzle Style

VIT

Nozzle Grip

None

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NH

Nozzle Hose Coupling Style

Rocker

Nozzle Hose Coupling Swivel

Swivel

Nozzle Outlet Size (Imp)

1.5"

Nozzle Outlet Size (Met)

38 mm

Nozzle Outlet Type

NH Male

Nozzle Outlet Style

Male Threads

Nozzle Outlet Swivel

Rigid

Nozzle Inlet Size (Imp)

1.5"

Nozzle Inlet Size (Met)

38 mm

Nozzle Inlet Connection Type

NH

Nozzle Inlet Coupling Style

Rocker

Nozzle Inlet Coupling Swivel

Swivel
