VALVE INTEGRAL TIP 7/8″ DIA
$638.30
1.5″F INLET X 1.5″M OUTLET
Separate ball-type shutoff valve for use with tip only nozzles. Use the valve as a smooth bore at the selected outlet diameter. Six detent flow positions. Optional colored handle covers (NFPA 1900) available. 1.5″ NH (38 mm) rocker lug full-time swivel inlet coupling and 1.5″ NH (38 mm) male outlet standard. All lightweight materials are used. All Prices in USD

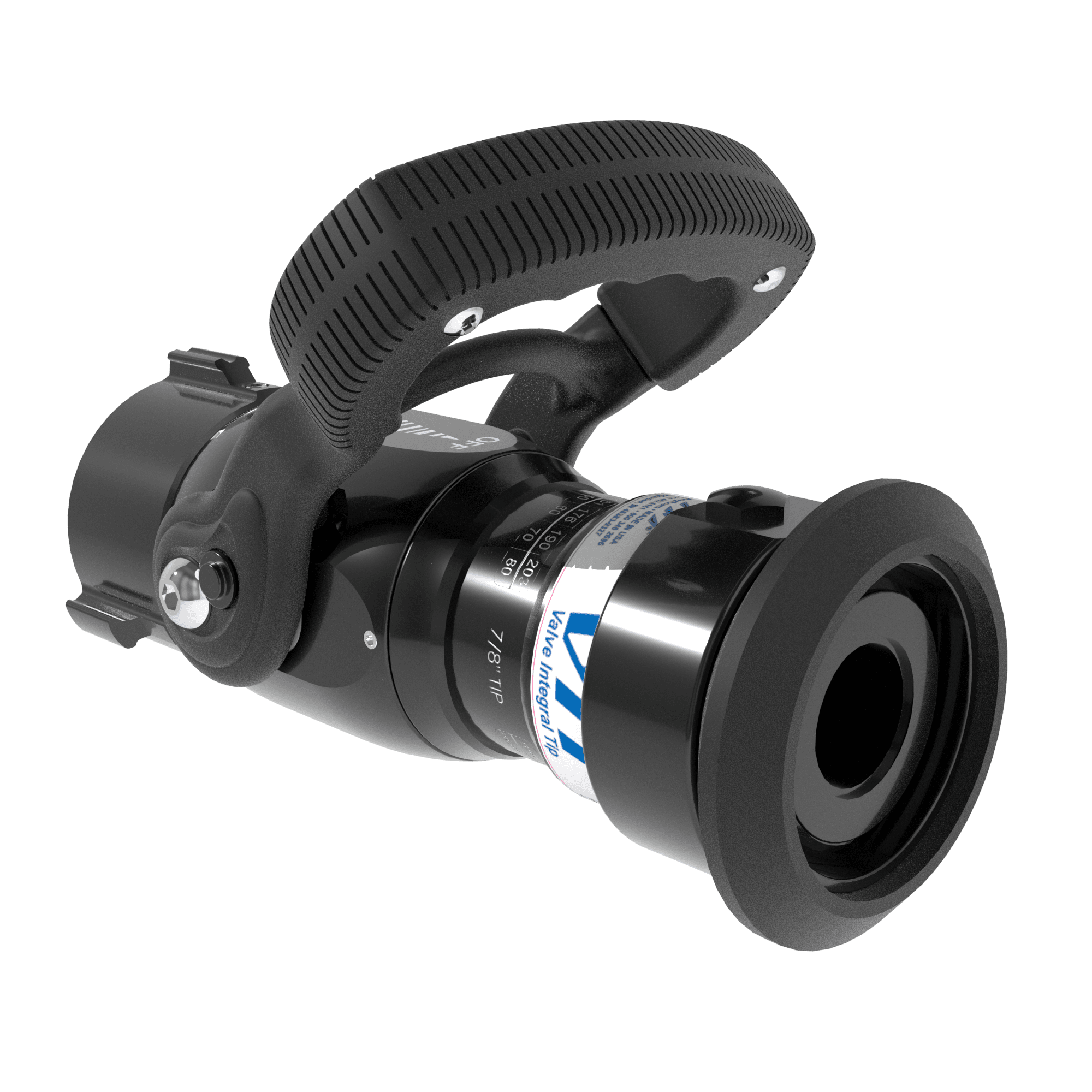

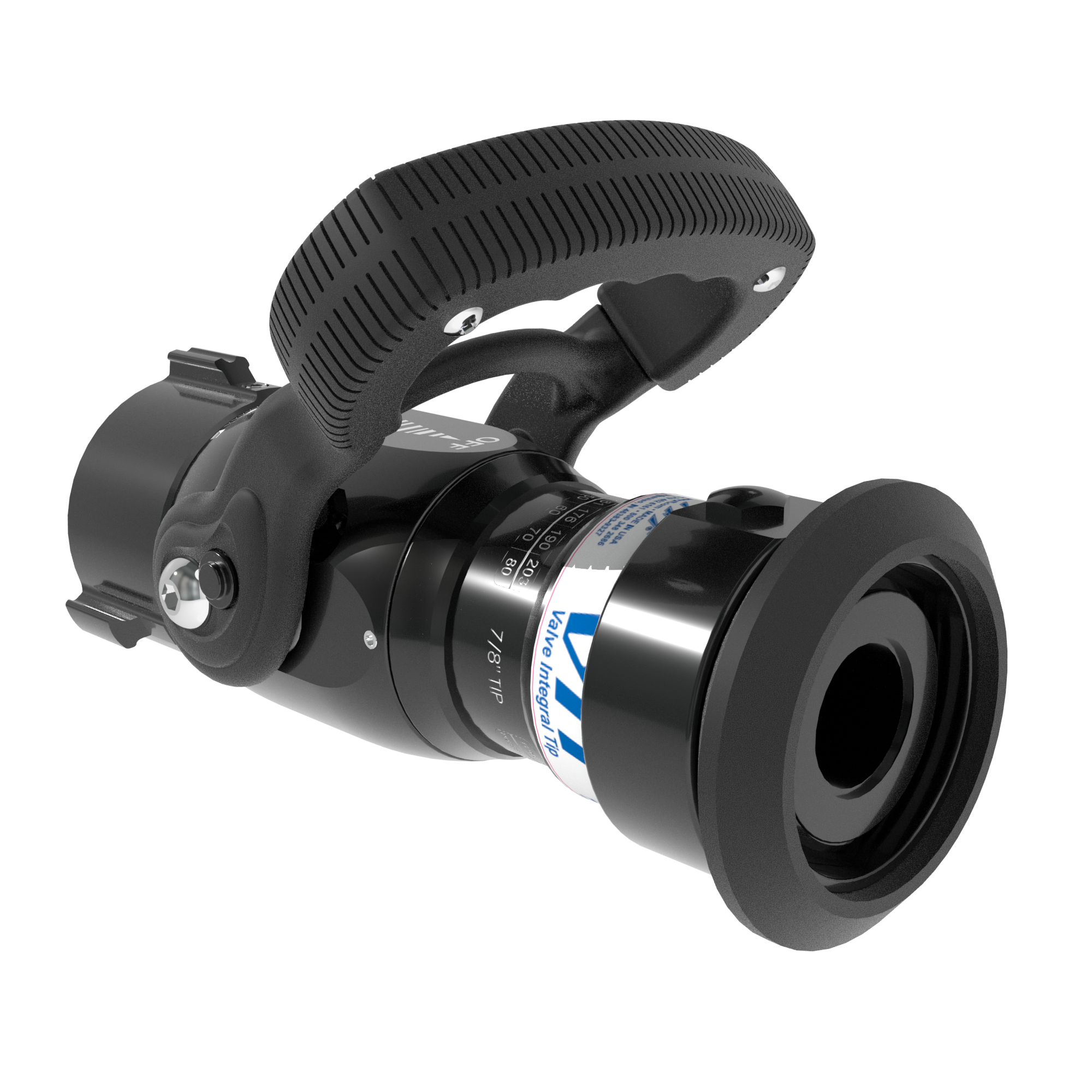

The Task Force Tips VALVE INTEGRAL TIP 7/8″ DIA is a robust handline nozzle featuring a fixed smooth bore discharge combined with an integral shut-off valve. Engineered for precise stream delivery and operational efficiency, this unit provides firefighters with reliable control for direct fire attack and structural protection scenarios.
- The integrated 7/8″ (22mm) diameter tip delivers a consistent, penetrating stream for effective reach and hydraulic performance.
- A 1.5″ (38mm) NH Female rocker lug inlet with full-time swivel ensures rapid, secure hose attachment and prevents kinking during dynamic operations.
- Weighing just 3.800 lbs, this design minimizes fatigue, enhancing maneuverability and sustained use on the fireground.
- The durable metal aluminum bumper offers superior protection against impact and abrasion in demanding environments.
- Equipped with a 1.5″ (38mm) NH Male threaded outlet, this tip allows for seamless integration with additional fog nozzles or other complementary equipment, extending its operational versatility.
This Task Force Tips integral tip is designed for situations requiring a focused, predictable water stream, offering both critical flow control and modularity for adapting to diverse fireground tactics and equipment configurations.
| Brand | |
|---|---|
| Weight | |
| Nozzle Type |
Handline Nozzles |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Outlet Diameter | |
| Bumper Material | |
| Inlet Connection Type | |
| Nozzle Style |
VIT |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38 mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Swivel |
| Nozzle Outlet Size (Imp) |
1.5" |
| Nozzle Outlet Size (Met) |
38 mm |
| Nozzle Outlet Type |
NH Male |
| Nozzle Outlet Style |
Male Threads |
| Nozzle Outlet Swivel |
Rigid |
| Nozzle Inlet Size (Imp) |
1.5" |
| Nozzle Inlet Size (Met) |
38 mm |
| Nozzle Inlet Connection Type |
NH |
| Nozzle Inlet Coupling Style |
Rocker |
| Nozzle Inlet Coupling Swivel |
Swivel |
