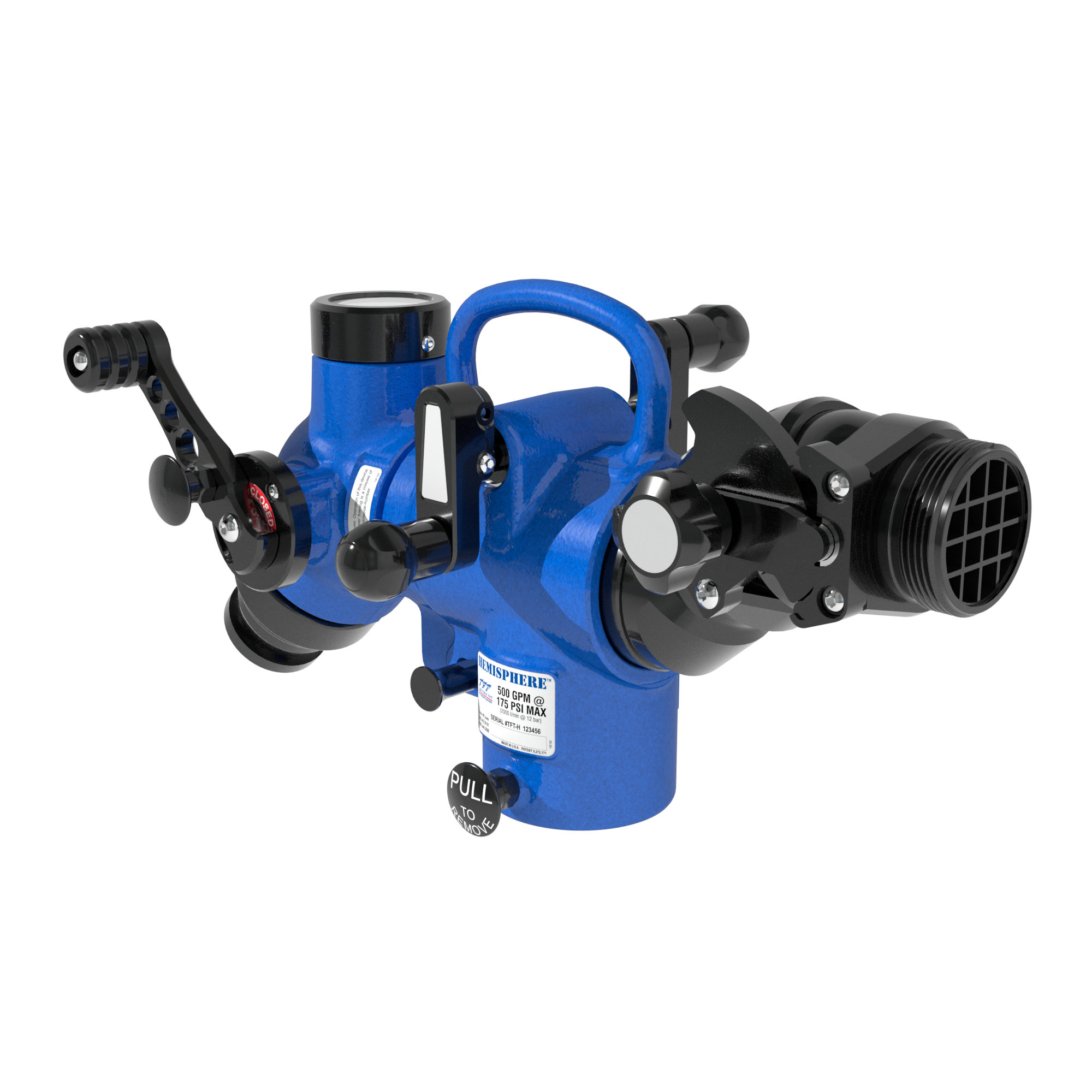

Hemisphere Mountable EN Monitor w/ Pressure Gauge – 65 mm BICM Swivel Inlet, 65 mm BSPM Rigid Outlet
High-Flow, Versatile Mountable Monitors
The Hemisphere™ Mountable Monitor provides high-flow water delivery in challenging firefighting environments, reaching up to 500 GPM (2000 LPM). Engineered for adaptability, this monitor features 360-degree rotation, allowing precise targeting in hard-to-reach areas. With multiple mounting options and a lightweight, portable design, the Hemisphere™ monitor is easy to deploy and maneuver, providing reliable water flow control for firefighting operations in confined or elevated spaces for both industrial and municipal departments Key Features: Flow Capacity : Delivers up to 500 GPM (2000 LPM), ideal for a range of firefighting applications 360° Aiming : Allows water to be directed precisely, enhancing flexibility in confined spaces Quick-Attach Mounting System : Securely mounts to various surfaces, with options like I-beam, hitch, and tank lip clamps for versatile use Lightweight Aluminum Construction : Easy to transport with a built-in carrying handle, ensuring quick setup and deployment Water Pressurized Safety Pins : Prevents accidental rotation/release during operation, adding safety and control Adjustable Stream Straightener : Built-in straightener ensures optimized stream reach and minimal turbulence Flow Control : Quarter-turn ball valve with a locking bail handle for precise flow management and to prevent unintentional discharge Wide Compatibility : Standard inlet and outlet sizes of 2.5” NH or BSP fittings, with options for Storz and other quick-connect attachments All Prices in USD
Out of stock
The Task Force Tips Hemisphere Mountable EN Monitor provides high-volume fire suppression with precise manual control for fixed-point applications. This EN certified monitor is engineered for robust performance and reliable water delivery in critical environments.
- Flexible, Secure Connections: A 65 mm BICM swivel inlet with quick-connect capability simplifies supply line attachment, while the 65 mm BSPM rigid male threaded outlet ensures stable nozzle deployment.
- Total Positional Control: Manually direct suppression efforts precisely with full 360° horizontal and 360° vertical range of motion.
- Optimized Flow Management: Control up to 2000 LPM using the integrated ball valve, supported by an included pressure gauge for real-time monitoring and an integrated stream straightener for improved stream quality.
- Enhanced Operational Safety: Features like pressurized pins and a locking valve handle contribute to stable, secure operation on the fireground.
This monitor is engineered for demanding industrial and municipal environments, providing reliable, high-capacity water delivery essential for effective fixed-site fire protection. Its thoughtful design aids firefighters in maintaining control and safety during critical incidents.
| Color | |
|---|---|
| Brand | |
| Weight | |
| Bundle |
Monitor Only |
| Monitor Type |
Mountable |
| Certifications | |
| Monitor Supply Size (Imp) |
2.5" |
| Monitor Supply Size (Met) |
65 mm |
| Monitor Supply Type |
BIC Male |
| Monitor Supply Style |
Quick-Connect |
| Monitor Supply Swivel |
Swivel |
| Monitor Horizontal Range |
360° |
| Monitor Vertical Range |
360° |
| Monitor Control |
Manual |
| Monitor Supply Inlets |
Single |
| Monitor Outlet Size (Imp) |
2.5" |
| Monitor Outlet Size (Met) |
65 mm |
| Monitor Outlet Type |
BSP Male |
| Monitor Outlet Style |
Male Threads |
| Monitor Outlet Swivel |
Rigid |
| Max Flow Rate (GPM) |
500 GPM |
| Max Flow Rate (LPM) |
2000 LPM |
| Bundle Stream Straightener |
Integrated |
| Monitor Valve Type |
Ball Valve |
| Safety Features |
Pressurized Pins & Locking Valve Handle |
| Monitor Pressure Gauge |
Included |
