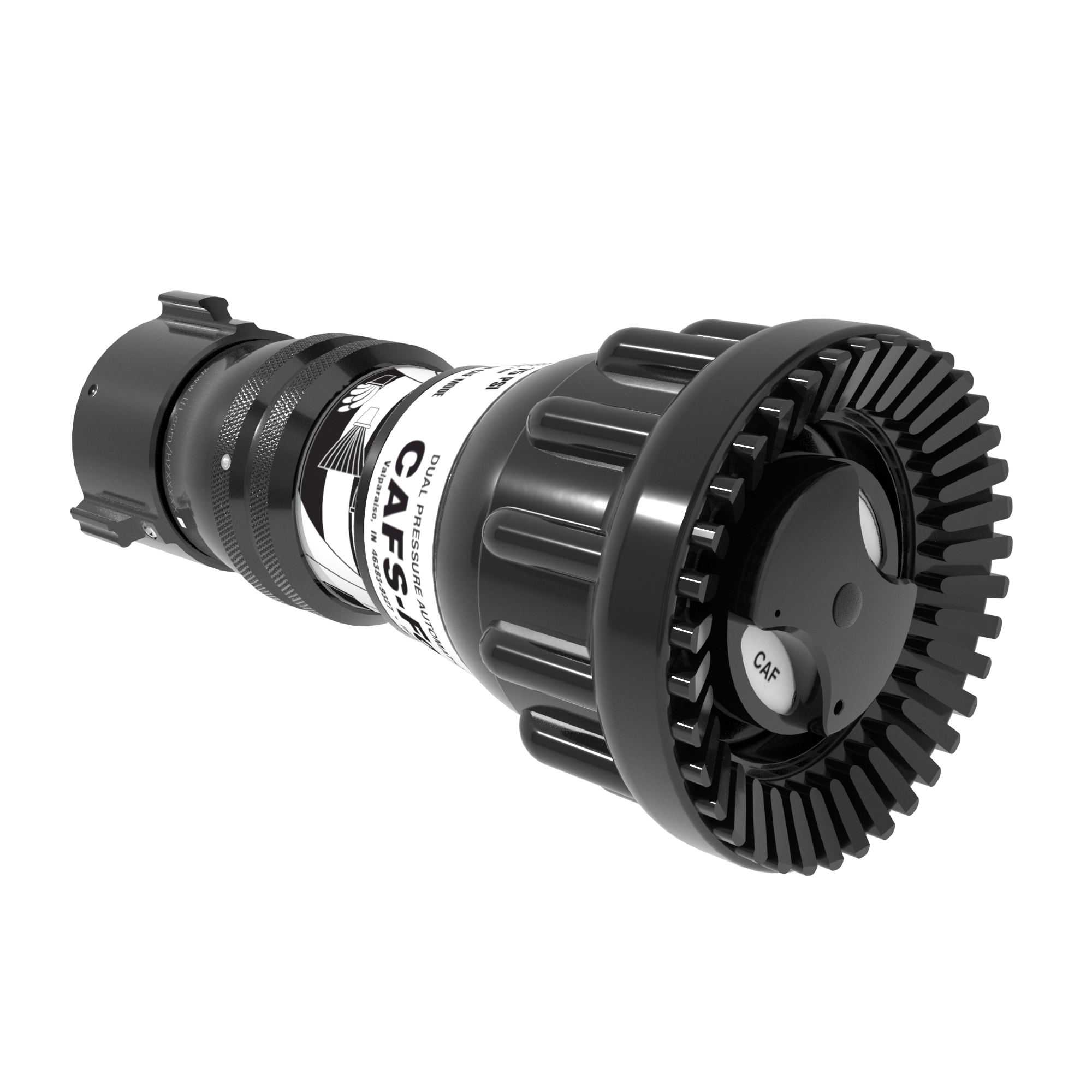

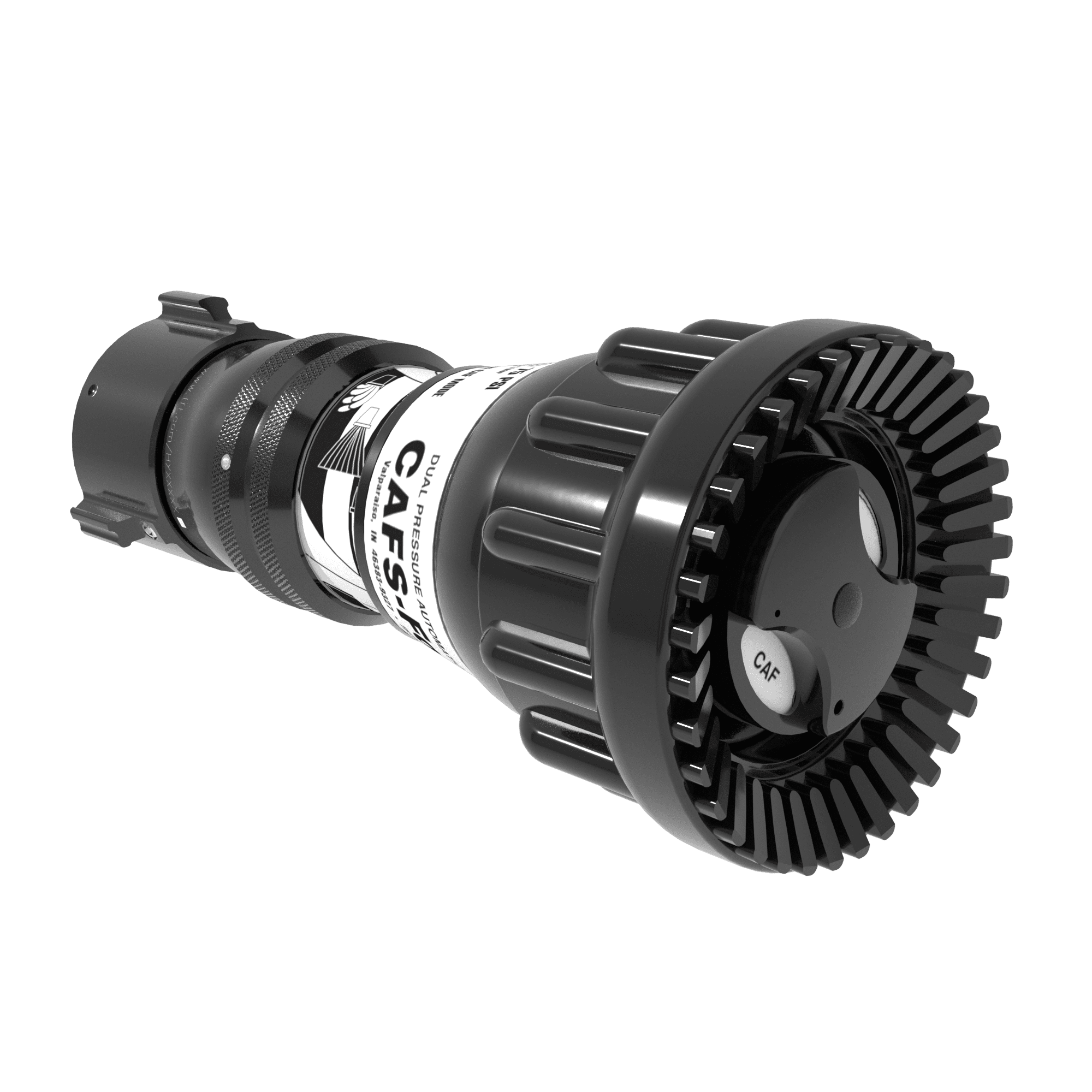

CAFS-FORCE2 TIP 1.5″F
$1,271.40
95-250 GPM @ 75 PSI DUAL PRESSURE
The ONLY automatic nozzle combination designed specifically for Compressed Air Foam (CAFS) and water applications, CAFS-Force is engineered to provide optimal foam stream performance, as well as offering low pressure nozzle operations when using water alone. The CAFS-Force 2 tip features an automatic dual-pressure control with a water flow capacity of 95-250 gpm @ 75 psi (360-946 l/min @ 5 bar) that may be switched from standard low pressure (water application) to CAFS mode. 1.5″ NH (38 mm) rocker lug coupling is standard. All Prices in USD
The CAFS-FORCE2 TIP 1.5″F from Task Force Tips is an automatic handline nozzle tip engineered for reliable performance in fire suppression, optimized for use with Compressed Air Foam Systems (CAFS). This tip provides consistent flow and pressure characteristics essential for effective fireground operations.
- The automatic flow capability delivers 95-250 GPM (360-950 l/min) at a consistent 75 PSI (5 bar), providing adaptable performance for dynamic fireground conditions.
- Weighing 4.600 lbs, the CAFS-FORCE2 TIP supports extended operation with reduced physical strain, enhancing maneuverability.
- Engineered specifically as a CAFS-Force™ product, this tip is optimized for efficient application of compressed air foam.
- Equipped with fixed fog teeth, it ensures a reliable and consistent protective pattern for firefighter safety or suppression tactics.
- A robust rubber-bonded bumper offers crucial protection, contributing to the nozzle’s long-term durability in demanding environments.
With its 1.5″ (38 mm) NH rocker lug inlet and break-apart design, this nozzle tip is a versatile component for municipal and industrial firefighting, delivering precise control and consistent performance when fire attack demands it.
| Nozzle Valve Style |
Handline Nozzle |
|---|---|
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
95-250 GPM |
| Target Nozzle Flow (Met) |
360-946 l/min |
| Target Nozzle Pressure (Bar) |
5 |
| Flow Rate | |
| Break Apart Style | |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Style | |
| Pressure Mode | , |
| Bumper Material | |
| Fog Teeth | |
| Operating Pressure | , |
| Nozzle Style |
CAFS-FORCE |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Non-Full Time Swivel |
| Product Weight (Imp) |
4.600 lbs |
| Target Nozzle Pressure (PSI) |
75 |
