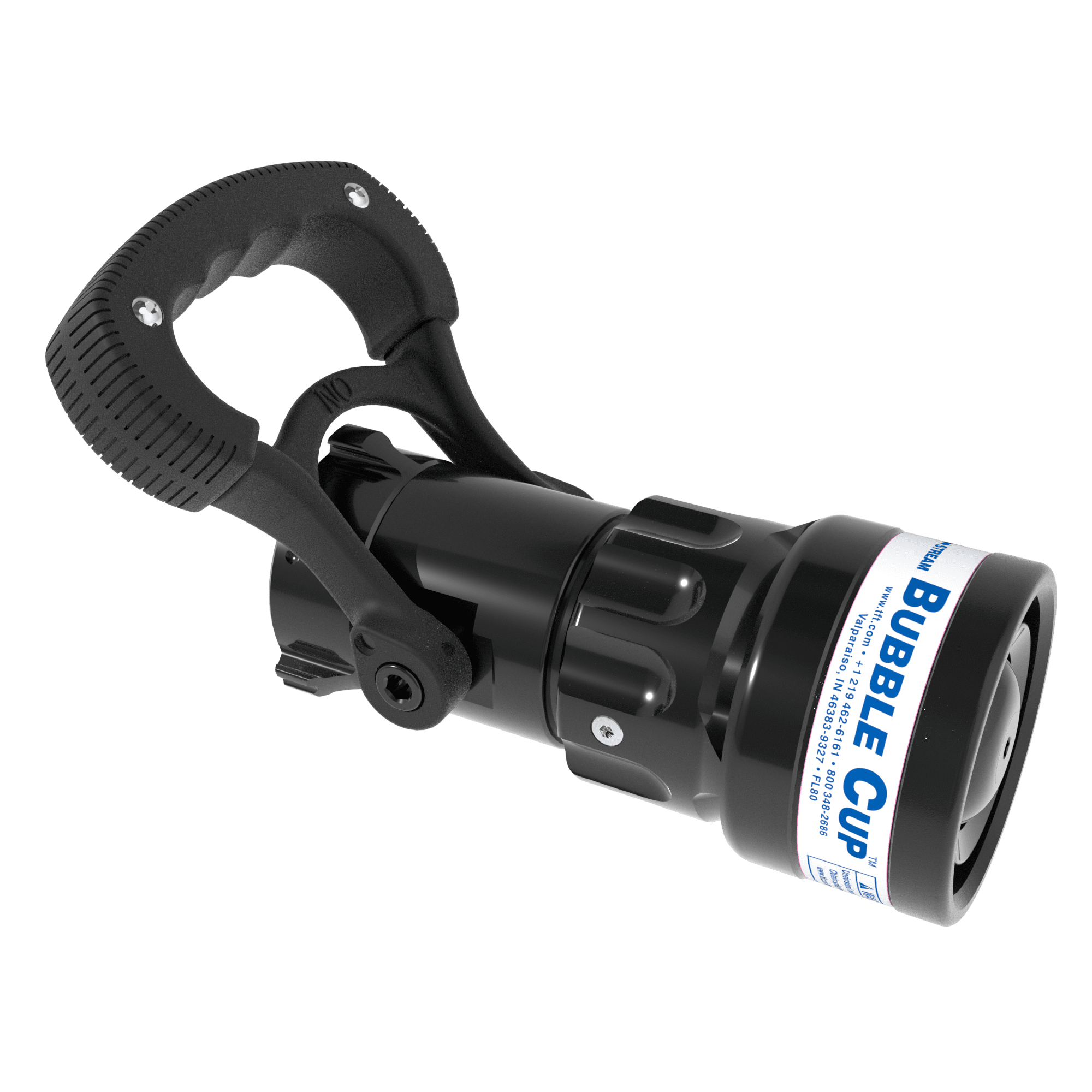

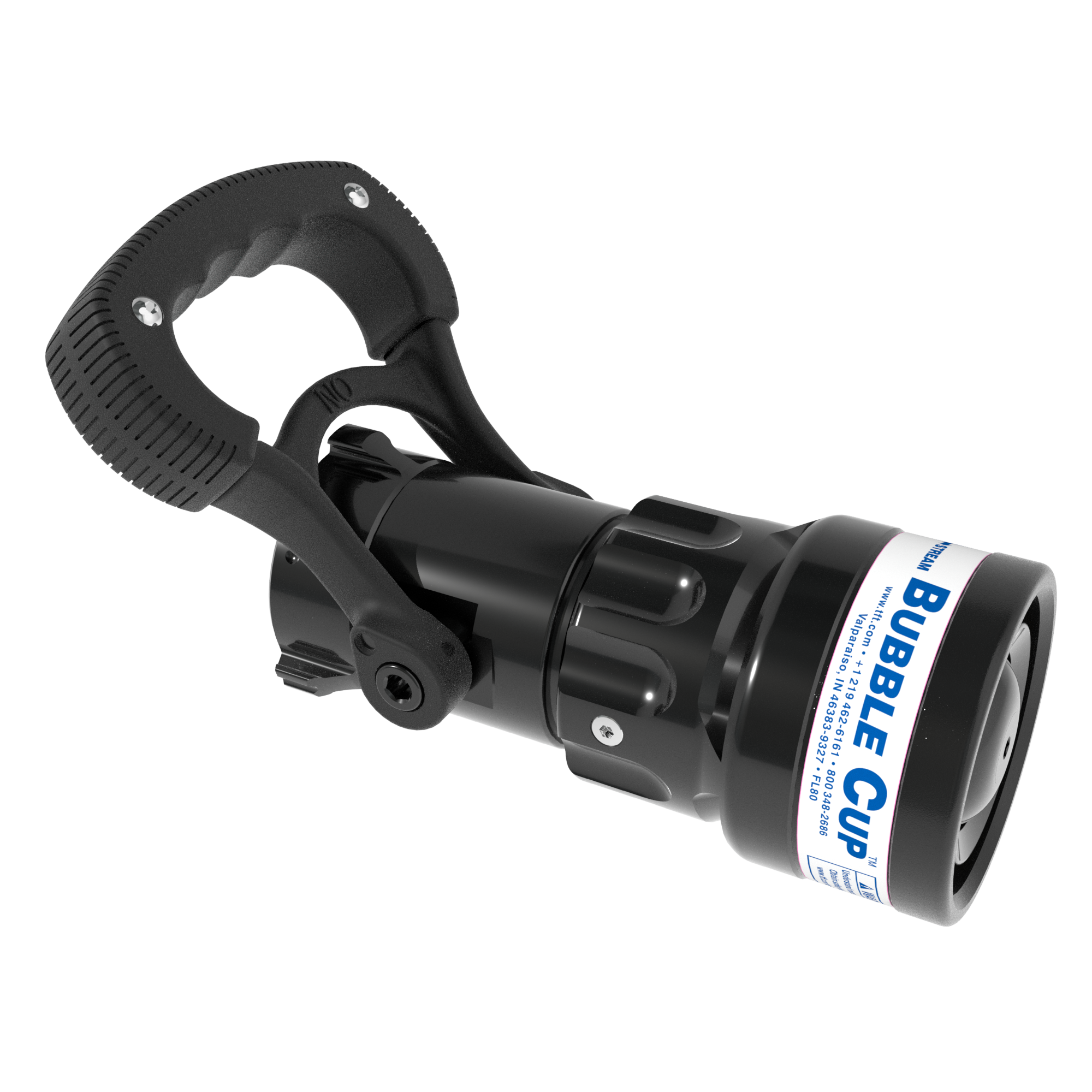

BUBBLE CUP NOZZLE 1.5″F
$715.65
20&60 GPM @ 100 PSI FOAM ASPIRATING
Dual gallonage Bubble Cup nozzle with two flow settings of 20 and 95 gpm @ 100 psi (75 and 360 l/min @ 7 bar). All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat, stainless steel shut-off ball and a twist “off” position for positive shut off. Rocker lug 1.5″ NH (38 mm) swivel is standard. All Prices in USD
The Task Force Tips BUBBLE CUP NOZZLE 1.5″F is a selectable handline nozzle, purpose-built to provide effective agent application across diverse fireground scenarios. Its durable, integrated design offers operational flexibility for professional use.
- Flexible Flow Selection: Seamlessly adjust between 20 GPM (75 LPM) and 95 GPM (360 LPM) at 100 psi (7 bar) to precisely match the demands of initial attack, overhaul, or specific agent delivery.
- Robust Durability: Constructed with a stainless valve design and a resilient aluminum bumper, this nozzle is engineered to withstand the rigors and corrosive conditions encountered during firefighting operations.
- Integrated Control: The one-piece design, incorporating the valve, ensures streamlined operation and efficient flow management directly at the point of application.
- Optimized Aeration: The distinctive Bubble Cup nozzle style delivers an effective aerated stream, critical for specialized applications.
- Lightweight Handling: Weighing just 2.800 lbs, it contributes to reduced operator fatigue, enhancing maneuverability and control during extended engagements.
This BUBBLE CUP NOZZLE 1.5″F is a vital asset for municipal and industrial fire departments, offering consistent performance and adaptability for general firefighting or specialized foam applications.
| Brand | |
|---|---|
| Weight | |
| Target Nozzle Flow (Imp) |
20/95 GPM |
| Target Nozzle Flow (Met) |
75/360 LPM |
| Target Nozzle Pressure (Bar) |
7 |
| Nozzle Type |
Handline Nozzle |
| Valve Design | |
| Flow Rate | |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Style | |
| Pressure Mode | |
| Bumper Material | |
| Operating Pressure | |
| Nozzle Style |
Bubble Cup |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Non-Full Time Swivel |
| Target Nozzle Pressure (PSI) |
100 |
