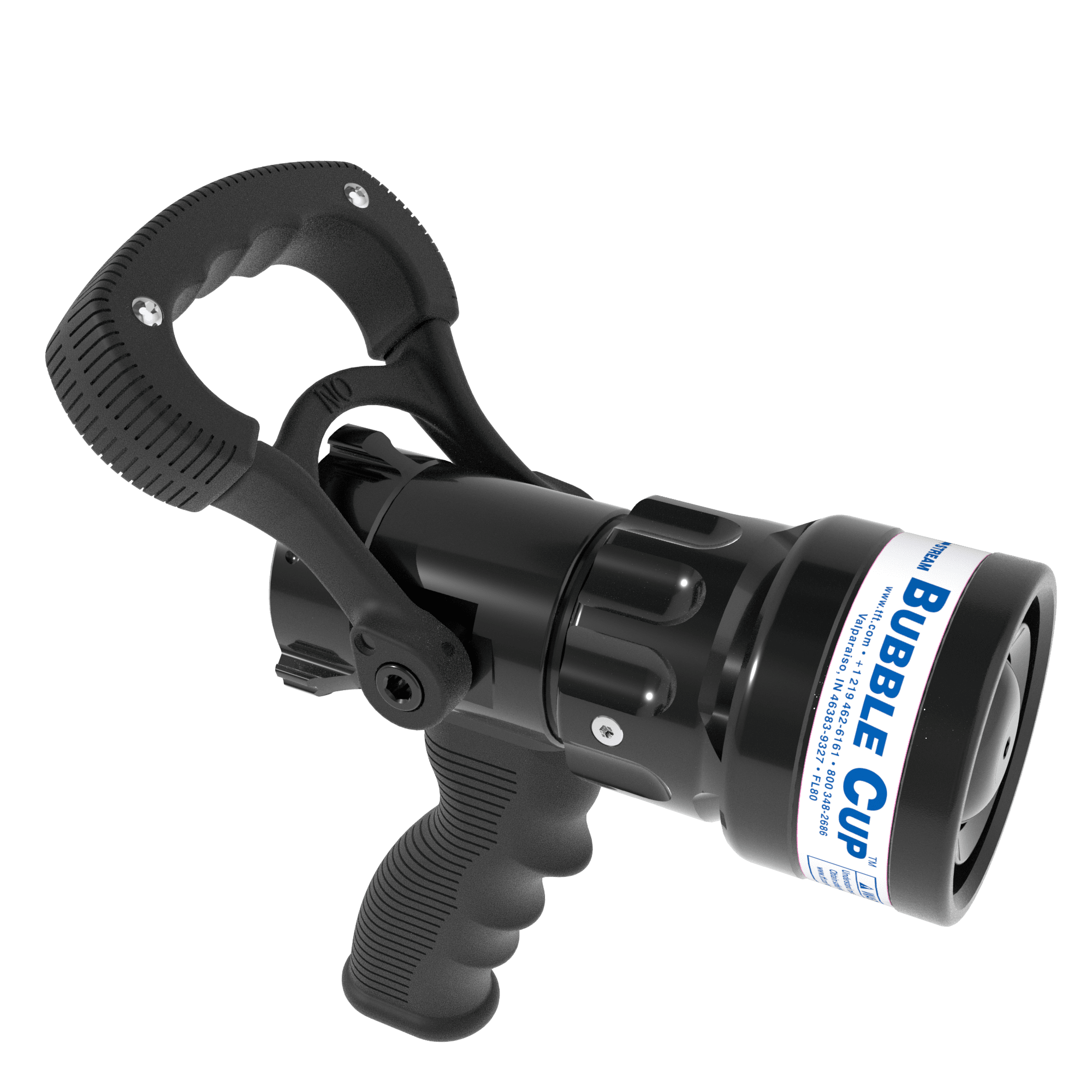

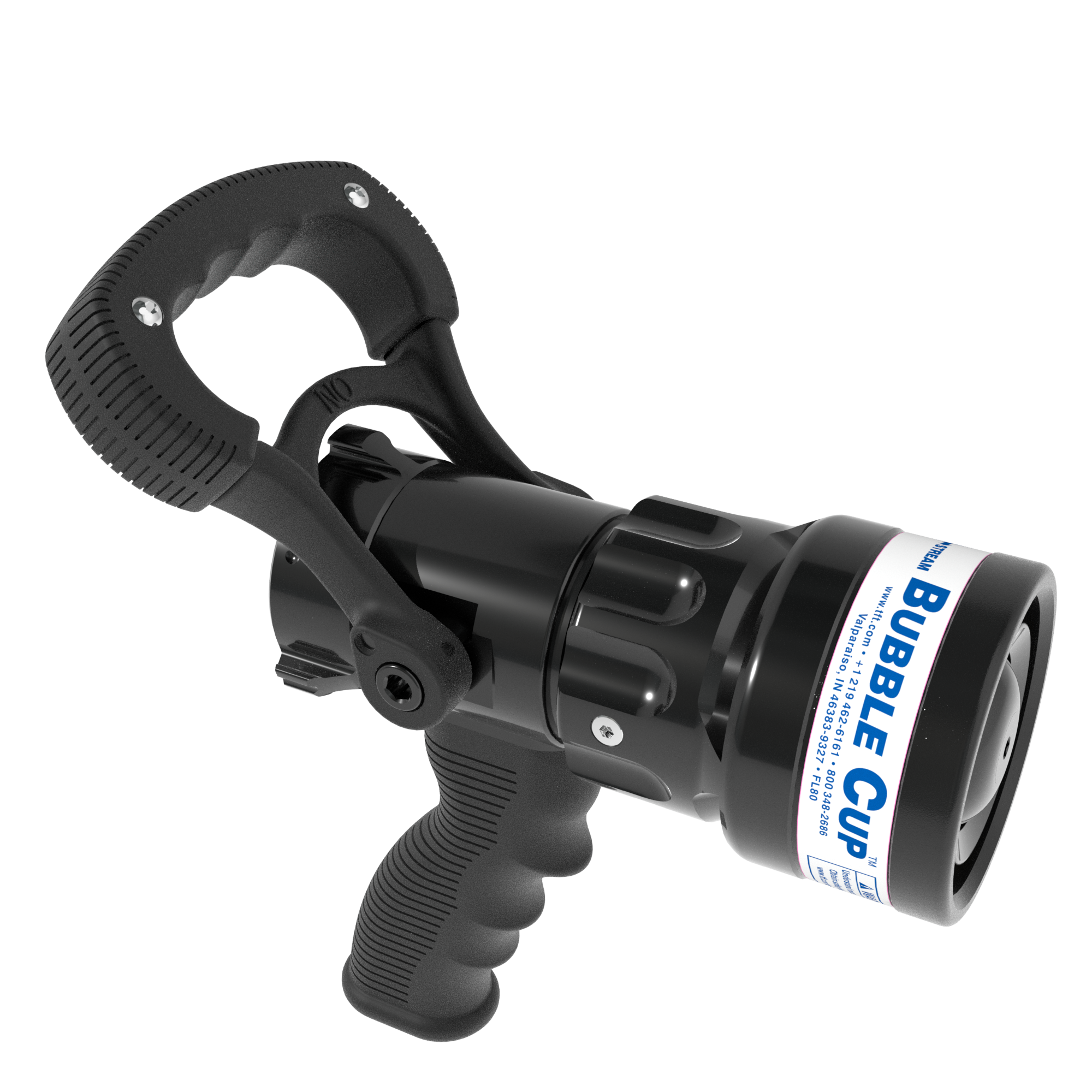

BUBBLE CUP W/GRIP 1.5″F
$622.70
20&60 GPM @ 100 PSI FOAM ASPIRATING
Dual gallonage Bubble Cup nozzle with two flow settings of 20 and 60 gpm @ 100 psi (75 and 230 l/min @ 7 bar). All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat, stainless steel shut-off ball and a twist “off” position for positive shut off. Pistol grip is mounted below the valve. Rocker lug 1.5″ NH (38 mm) swivel is standard. All Prices in USD
The BUBBLE CUP W/GRIP 1.5″F is a Task Force Tips selectable handline nozzle engineered for precise water delivery in demanding fireground operations. Designed for effective control, this unit provides robust performance where flow adaptation is critical.
- Flexible Flow Control: Offers selectable flow rates of 20/60 GPM (75/30 l/min) at a consistent operating pressure of 100 psi (7 bar), enabling operators to adapt water application rapidly to incident requirements.
- Enhanced Handling: Features an integrated pistol grip for superior control and ergonomics, designed to reduce operator fatigue during extended use.
- Durable Construction: Built with a robust stainless valve design and a metal aluminum bumper, ensuring resilience against the rigors of firefighting environments.
- Lightweight Maneuverability: Weighing just 3.100 lbs, this 1.5″ (38 mm) nozzle facilitates agile movement and easier deployment for dynamic operations.
- Secure Connection: Equipped with a standard 1.5″ (38mm) NH rocker coupling for reliable and secure attachment to hose lines.
This Bubble Cup® style nozzle, with its one-piece integrated valve design, provides reliable and adaptable water streams for municipal and industrial firefighting, ensuring effective response capabilities and operational confidence on the line.
| Brand | |
|---|---|
| Weight | |
| Target Nozzle Flow (Imp) |
20/60 GPM |
| Target Nozzle Flow (Met) |
75/230 LPM |
| Target Nozzle Pressure (Bar) |
7 |
| Nozzle Type |
Handline Nozzle |
| Pistol Grip | |
| Valve Design | |
| Flow Rate | |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Style | |
| Pressure Mode | |
| Bumper Material | |
| Operating Pressure | |
| Nozzle Style |
Bubble Cup |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Non-Full Time Swivel |
| Target Nozzle Pressure (PSI) |
100 |
