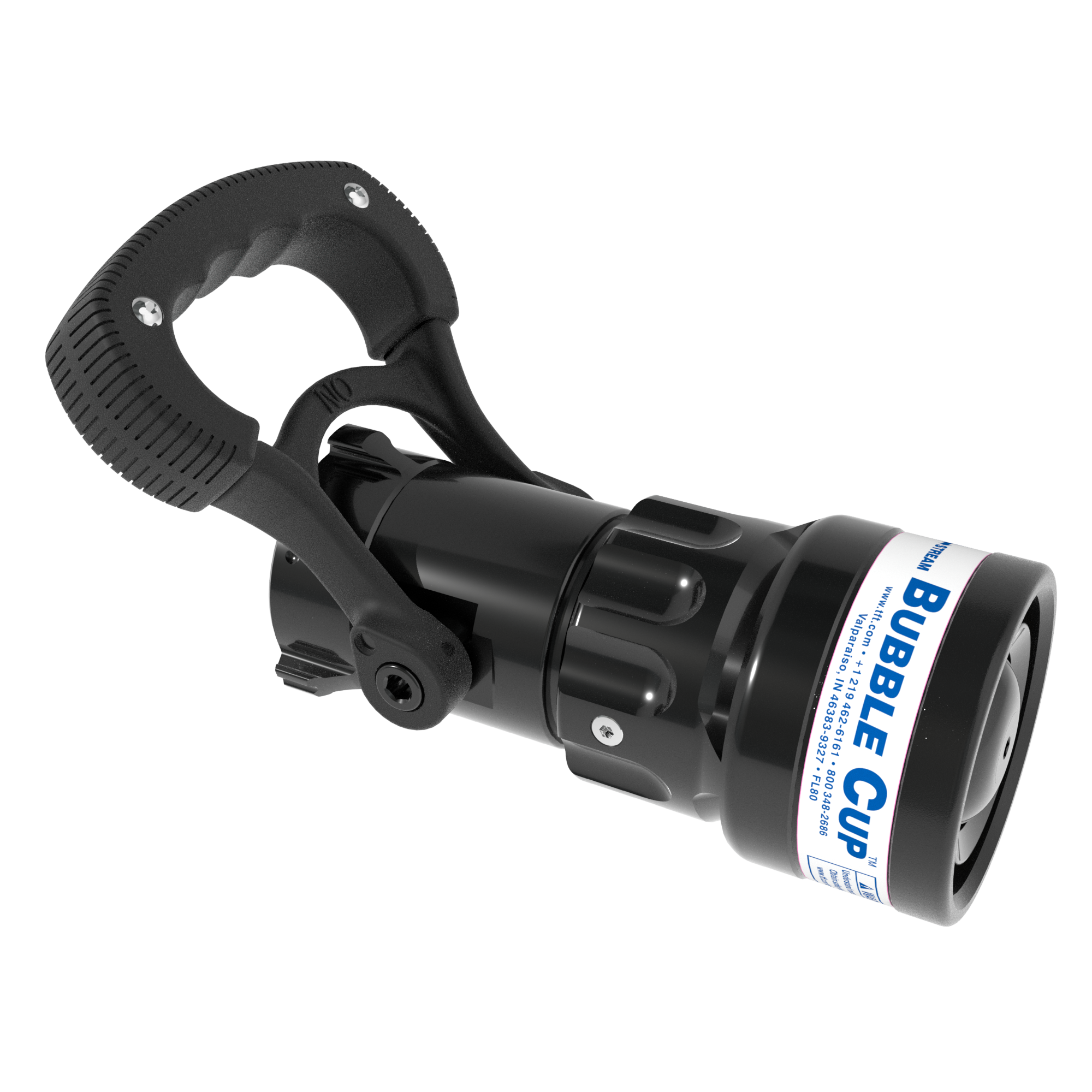

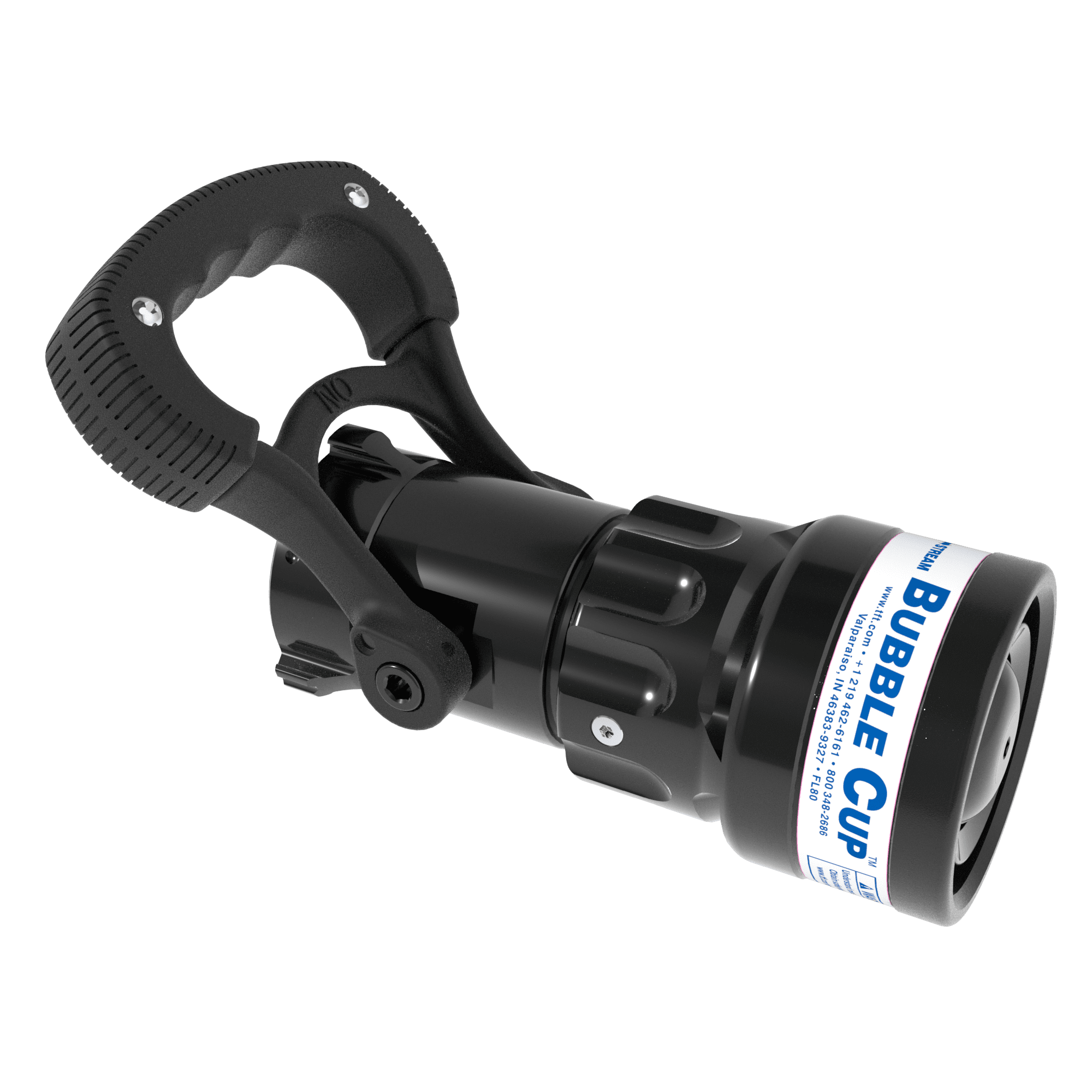

BUBBLE CUP NOZZLE 1.5″F
$730.60
20&60 GPM @ 100 PSI FOAM ASPIRATING
Dual gallonage Bubble Cup nozzle with two flow settings of 20 and 60 gpm @ 100 psi (75 and 230 l/min @ 7 bar). All lightweight materials, hard coat anodized aluminum. Quick-change rear valve seat, stainless steel shut-off ball and a twist “off” position for positive shut off. Rocker lug 1.5″ NH (38 mm) swivel is standard. All Prices in USD
The Task Force Tips BUBBLE CUP NOZZLE 1.5″F is a robust handline nozzle engineered for operational versatility and reliable performance in demanding firefighting scenarios. Designed as a one-piece unit with an integrated valve, it offers straightforward deployment for municipal and industrial fire suppression tasks.
- Flow Flexibility: Selectable flow rates of 20/60 GPM (75/230 LPM) allow for rapid adaptation to varying fire conditions and tactical needs, optimizing water application.
- Enhanced Maneuverability: Weighing 2.800 lbs, this lightweight design minimizes operator fatigue, improving handling and control during extended operations.
- Durability and Longevity: The stainless valve design and aluminum bumper material provide critical protection against corrosion and impact, ensuring consistent performance in harsh environments.
- Integrated Construction: Constructed as a single unit with an integrated valve, the nozzle is streamlined for simplicity and robustness on the fireground.
- Specific Stream Profile: The Bubble Cup nozzle style delivers a specific, consistent stream characteristic at its 100 psi (7 bar) operating pressure, optimized for its intended application.
This 1.5″ (38 mm) handline nozzle is designed for applications requiring precise flow management and a specific stream profile, contributing to effective incident mitigation on the fireground. Task Force Tips delivers a reliable tool for professional fire service.
| Brand | |
|---|---|
| Weight | |
| Target Nozzle Flow (Imp) |
20/60 GPM |
| Target Nozzle Flow (Met) |
75/230 LPM |
| Target Nozzle Pressure (Bar) |
7 |
| Nozzle Type |
Handline Nozzle |
| Valve Design | |
| Flow Rate | |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Style | |
| Pressure Mode | |
| Bumper Material | |
| Operating Pressure | |
| Nozzle Style |
Bubble Cup |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Non-Full Time Swivel |
| Target Nozzle Pressure (PSI) |
100 |
