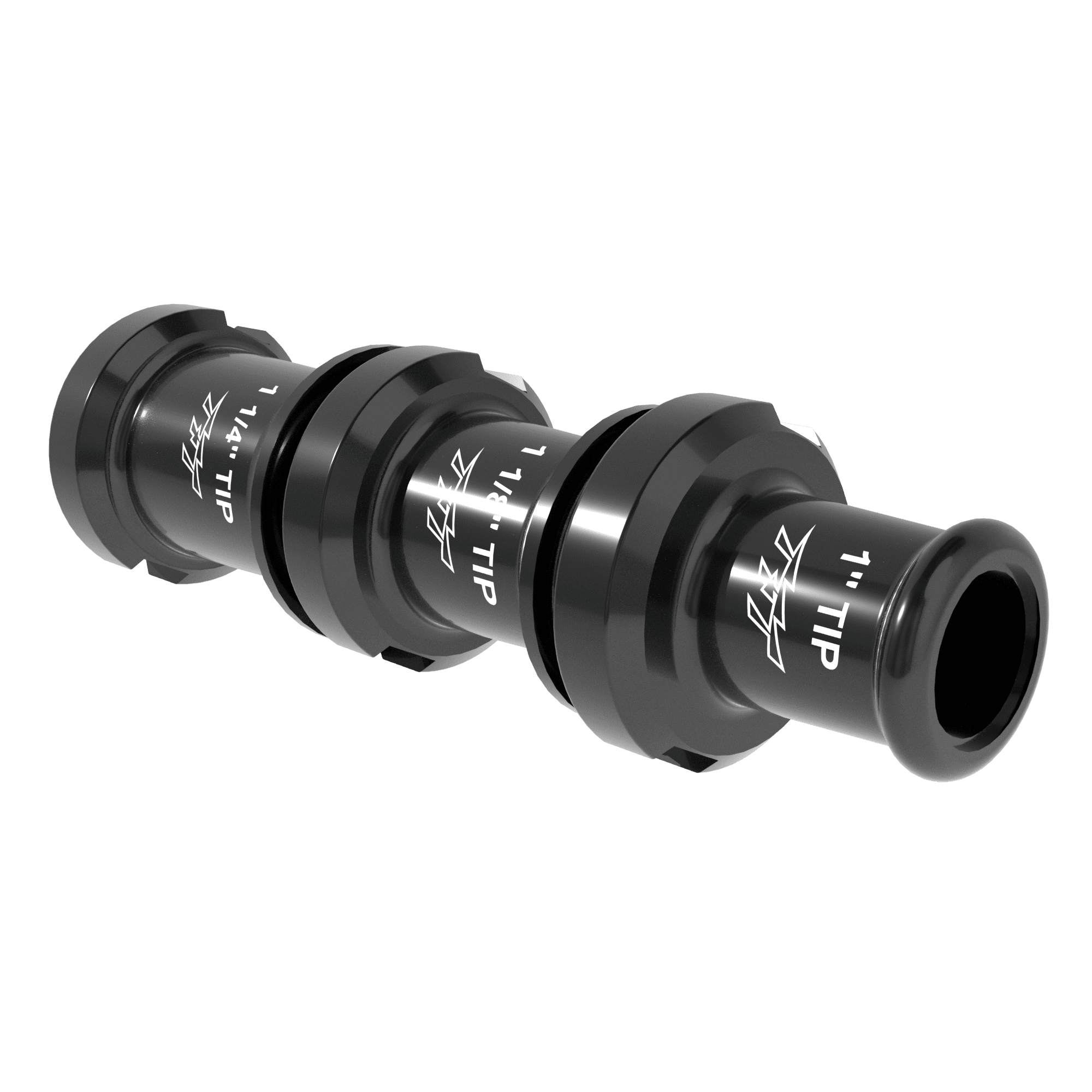

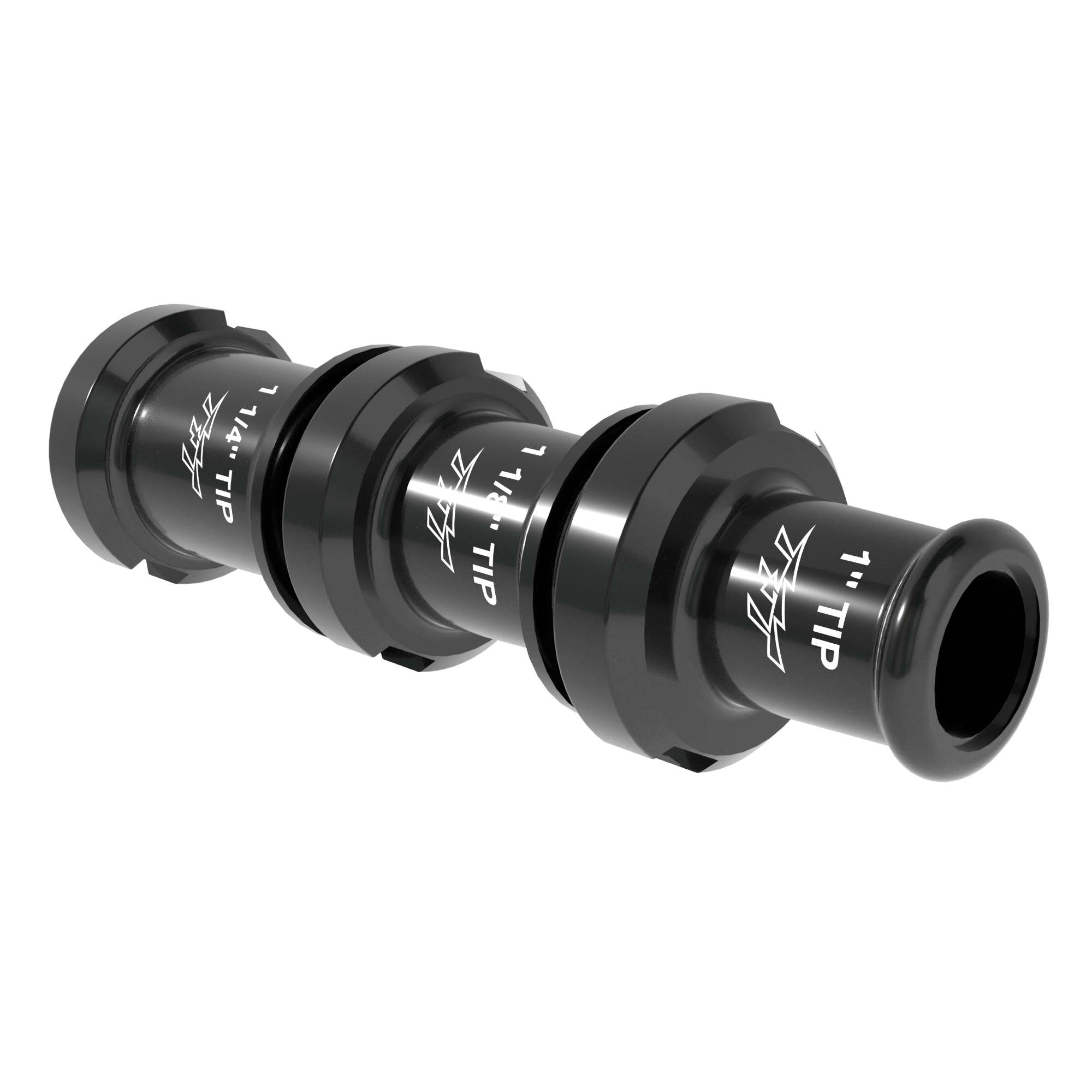

Smooth Bore Triple-Stacked Nozzle Tip Set (1-1/4″, 1-1/8″, 1″) – 1.5″ NPSHF Rigid Inlet

$213.20

1.5″ Smooth Bore Triple Stack Handline Nozzle Tips

Enhance your firefighting toolkit with our 1.5″ Smooth Bore Triple Stack Handline Nozzle Tips. These sets include three tips (1-1/4″, 1-1/8″, 1.0″), offering versatility and superior performance. Crafted from durable aluminum alloy and hard coat anodized, they are built to last. The recessed orifice edge and aluminum bumper protect against damage, ensuring consistent stream quality. Each tip is laser-engraved with a pressure and flow chart for quick and easy identification. Key Features: Triple Stacked Set: 1-1/4″, 1-1/8″, 1.0″ Inlet Options: 1.5″ NHF and NPSHF High-Durability Construction: Aluminum alloy with hard coat anodizing Protection: Recessed orifice edge and aluminum bumper for added durability Easy Reference: Laser-engraved pressure and flow chart for quick identification All Prices in USD

SKU: FS-3STACK-IF Categories: , Brand
Description

The Task Force Tips Smooth Bore Triple-Stacked Nozzle Tip Set provides firefighters with immediate flow control and versatile stream delivery for demanding fireground operations. This robust 1.5″ NPSHF rigid inlet nozzle tip set is engineered for precise water application, ensuring effective response capabilities.

  • Achieve adaptable water delivery with the triple-stacked smooth bore tips (1″, 1-1/8″, 1-1/4″), enabling rapid flow adjustments without changing the nozzle.
  • Benefit from immediate and positive water shut-off and flow management via the integrated Ball Valve, ensuring precise control over your stream.
  • The smooth bore design delivers a concentrated, high-momentum stream for superior reach and effective knockdown capabilities, free from obstruction with its toothless face.
  • Experience enhanced maneuverability and reduced fatigue during extended operations, thanks to its lightweight 1.400 lbs construction and compact 8.5″ length.
  • Ensure a secure and stable connection to your hose line with the 1.5″ NPSHF rigid inlet featuring durable rocker lugs and a non-swiveling design.
  • Deliver consistent water volumes ranging from 210-330 GPM (795-1250 LPM) at a target pressure of 50 PSI (3 Bar), optimized for effective fire suppression.

Designed for reliability and performance, this Task Force Tips stacked tip set is ideal for structural firefighting, industrial applications, and situations requiring adaptable flow rates. Its streamlined design and rigid connection ensure consistent, powerful water projection when it matters most, providing critical control on the fireground.

Additional information
Color

Nozzle Valve Style

Ball Valve

,

Sold Separately

Nozzle Teeth

Toothless

Brand

Weight

Target Nozzle Flow (Imp)

210-330 GPM (Stacked Tips)

Target Nozzle Flow (Met)

795-1250 LPM (Stacked Tips)

Target Nozzle Pressure (Bar)

3 Bar

Target Nozzle Pressure (KPA)

350 KPA

Nozzle Type

Smooth Bore

Nozzle Style

Stacked Tips

Nozzle Grip

None

Nozzle Hose Size (Imp)

1.5"

Nozzle Hose Size (Met)

38 mm

Nozzle Hose Connection Type

NPSH Female

Nozzle Hose Coupling Style

Rocker Lugs

Nozzle Hose Coupling Swivel

Rigid

Nozzle Orifice Size (Imp)

1", 1-1/8", 1-1/4"

Nozzle Orifice Size (Met)

25 mm, 29 mm, 32 mm

Product Length (Imp)

8.5"

Product Length (Met)

21.59 cm

Target Nozzle Pressure (PSI)

50 PSI

Document Attachments

Technical Specifications and Drawings
