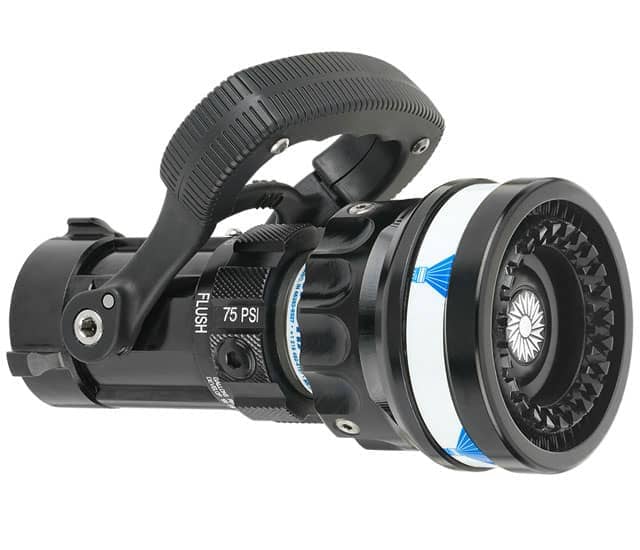

QUADRACUP NOZZLE 1.5″F
$1,797.25
30-125 GPM @ 75 PSI FIXED TEETH
Selectable gallonage nozzle with four flow settings of 30, 60, 95, and 125 gpm @ 75 psi (110, 230, 360 and 470 l/min @ 5 bar). All lightweight materials, hardcoat anodized aluminum. Flush without shutting down. Quick-change rear valve seat and stainless steel shut-off ball. Rocker lug 1.5″ NH (38 mm) swivel is standard. All Prices in USD
The QUADRACUP NOZZLE 1.5″F from Task Force Tips is a selectable handline nozzle engineered for precise water delivery in demanding fire scenarios. Its robust design and selectable flow options emphasize operational flexibility and precise water application on the fireground.
- Flow Versatility: Operators can precisely select from four distinct flow rates: 30, 60, 95, or 125 GPM (110, 230, 360, or 470 LPM), all at a consistent 75 PSI (5 bar) operating pressure.
- Integrated Control: An integral ball valve design provides immediate, positive stream shutoff and allows for effective flow management directly at the nozzle.
- Fireground Handling: Weighing 5.300 lbs, this 1.5″ nozzle is designed for manageable handling, supporting extended operational periods without a pistol grip.
- Enhanced Durability: Equipped with a metal aluminum bumper, the nozzle body is protected against impacts and wear in challenging environments.
- Secure Connection: The 1.5″ (38 mm) NH rocker inlet ensures a reliable, non-full time swivel connection to standard handlines.
The QUADRACUP NOZZLE 1.5″F, with its robust one-piece design, provides firefighters with a reliable tool for effective suppression. Its combination of selectable flows and positive valve control makes it suitable for diverse municipal and industrial fireground applications, delivering consistent performance where it matters most.
| Nozzle Valve Style |
Ball Valve |
|---|---|
| Brand | |
| Weight | |
| Target Nozzle Flow (Imp) |
30,60,95,125 GPM |
| Target Nozzle Flow (Met) |
110,230,360,470 LPM |
| Target Nozzle Pressure (Bar) |
5 |
| Nozzle Type |
Handline Nozzle |
| Pistol Grip | , |
| Valve Design | , |
| Flow Rate | |
| Inlet Coupling Style | |
| Body Size | |
| Inlet Coupling Swivel | |
| Style | |
| Waterway Size | |
| Pressure Mode | |
| Bumper Material | |
| Operating Pressure | , |
| Nozzle Style |
QuadraCup |
| Nozzle Grip |
None |
| Nozzle Hose Size (Imp) |
1.5" |
| Nozzle Hose Size (Met) |
38mm |
| Nozzle Hose Connection Type |
NH |
| Nozzle Hose Coupling Style |
Rocker |
| Nozzle Hose Coupling Swivel |
Non-Full Time Swivel |
| Target Nozzle Pressure (PSI) |
75 |
