Foam Proportioner Robwen Flowmix

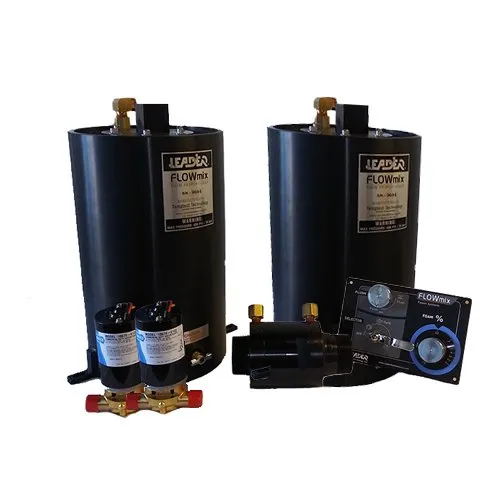

The DOUBLE kit version is used to double the reserve of foam concentrate to transport or diversify the reserve of foam concentrate to transport in order to proportion two different types of concentrate. 3 versions are available to suit all needs. The ROBWEN FLOWMIX is a storage and dosing unit specially designed for Class A additives.
product characteristics
ROBWEN FLOWMIX was specially designed for fire fighting, and its integrated reserve of foam concentrate stores the foam concentrate under ideal conditions protected from UV rays and oxygen.
Easy to use, simply connect it to a water supply so that it can accurately measure the additive to be injected.
Its range of flow rates and concentration – 5 gpm to 500 gpm (for a concentration of 0.1 to 1%) and up to 125 gpm (at 3%).- makes it very versatile. Generating only very low-pressure losses, ROBWEN FLOWMIX is ideal for long-length installations like in, for example, forest fire response.
| Flow Rate | |
|---|---|
| Operating Pressure | |
| DOSAGE |
0.1% , 0.2% , 0.3%, 0.4%, 0.5%, 0.7%, 1% and 3% |
| INLET / OUTLET |
2.5’’ BSP male |
| STORAGE TEMPERATURE |
-32°F to +140°F |
| Operating Temperature | |
| PRESSURE LOSS |
only 20 psi at 264 gpm |
| INLET PRESSURE GAUGE |
No |
| DIMENSIONS W X D X P |
contact us |
| CARRYING CASE |
Yes for the portable version |
