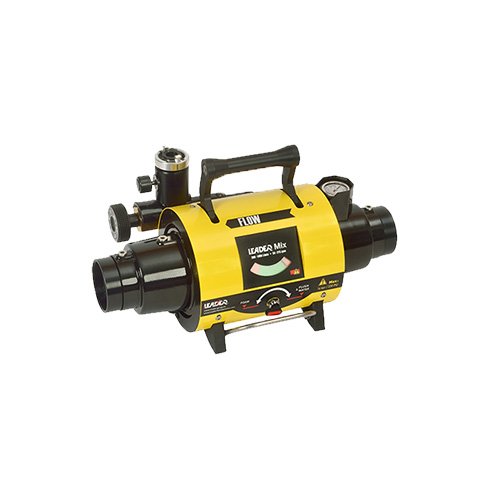

Fixed Automatic And Autonomous Foam Proportioner Leadermix 50 – 275G
This automatic proportioner allows precise dosing of all types of foam concentrates between 50 and 275 GPM with full autonomy.
product characteristics
LeaderMIX 50-275 allows precise dosing of all types of foam concentrates even during high flow rate variations. Starting at 75 psi, it allows to accurately dose the foam concentrate from 0.3% to 6% over a flow rate range from 50 to 275 GPM. Autonomous, it requires no electrical power and it is practically maintenance-free. Very easy to use, it has a bypass position that reduces pressure drops when the use of additive is not necessary. Via its optional control panel, the functions of LeaderMIX 1000 can be remote
| Flow Rate | |
|---|---|
| Operating Pressure | |
| DOSAGE |
0.3%, 0.5%, 1%, 3%, 6% |
| INLET / OUTLET |
2.5’’ BSP female |
| STORAGE TEMPERATURE |
-4°F to +140°F |
| Operating Temperature | |
| PRESSURE LOSS |
35% |
| INLET PRESSURE GAUGE |
no (but package available) |
| Weight | |
| DIMENSIONS W X D X P |
19.1 x 8.5 x 10.8’’ for the mobile version |
| CARRYING CASE |
No for the mobile version |
| EXTRACTION TUBE |
No |
| FOAM SUPPLY |
1’’ |
| PURGE BUTTON |
No |
| OPTION |
Remote control console |
