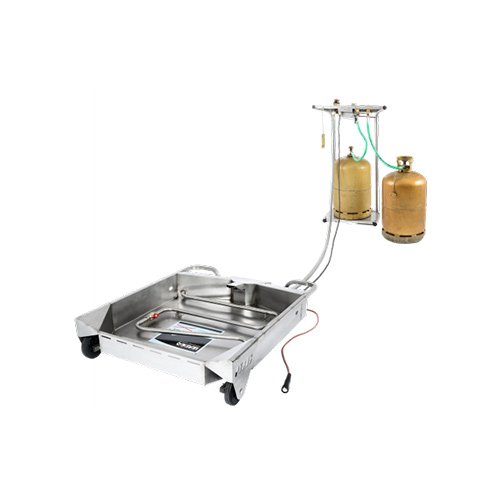

Fire Trainer / Flame Generator Pyros 3
Powerful and fully equipped (console, wireless and wired remote controls), it generates powerful flames of 9.8 ft high on the surface of the pan (8.9 ft²).
PRODUCT CHARACTERISTICS
PYROS 3, the most powerful fire trainer in the range, produces very powerful flames (up to 9.8 ft high) and high thermal radiation for realistic and impressive training.
For safe training, closer to the trainee, the fire trainer is equipped with a control panel and remote controls for perfect control of the fire (ignition, extinction and flame height) and control of the gas supply.
| FIRE TRAINER |
With water |
|---|---|
| CONNECTORS |
IP67 water and dust resistant connectors with protective caps. |
| IGNITION FLOW RATE |
79 lbs/h (14.5 psi) |
| Length | |
| FREQUENCY |
433 MHZ usable in the European Union Other countries: make enquiries |
| Range | |
| ELECTRIC CABLE |
length 29.5 ft – fire resistance (standard IEC 331) |
| Waterproof | |
| CONTROL HANDLER |
Fire ignition and extinction by push-button |
| CONSOLE |
Easy to carry, stows easily inside the fire trainer |
| GAS SUPPLY |
from 1 or 2 industrial-type propane gas bottles without flow limiter |
| SUPPLY PRESSURE ADJUSTMENT |
from 0 to 3 bar by pressure reduction valve fitted with pressure gauge |
| Dimensions | |
| Warranty | |
| Material | |
| SIZE ON THE GROUND |
L 46.1″ x D 38″ |
| GAS SUPPLY CONNECTION |
Quick clip-on coupling |
| SAFETY |
“Punch” button for emergency stops |
| REMOTE CONTROLS |
1 wired remote control + 1 wireless remote control |
| FLAME HEIGHT |
up to 9.8 ft |
| VOLUME OF WATER |
16.3 gallons |
| FIRE TRAINER WITH WATER |
yes |
| FIRE SURFACE AREA |
8.9 ft² |
| Weight | |
| FIRE TRAINER DIMENSIONS |
L 46.1″ x D 38″ x H 10.2″ |
| MOBILITY |
Large size requiring storage space (Pyros 3 is stored vertically) or a Van-type vehicle. |
| TRAINEE SAFETY |
Emergency stop and Gas supply taps on the console, Pressure indication, Solenoid valve for instant flame arrest |
| THERMAL RADIATION FELT |
Impressive oil-slick fire effect due to water |
| FLAMES |
Up to 9.8 ft high |
| NOMINAL FLOW RATE |
130 lbs/h (29 psi) |
