Bauer Compressors Portables
Great things. Small packages.
The JUNIOR II and OCEANUS come with an air purification system and fill hose, and they are safe, reliable, 3-stage compressors designed for serious sport divers.
Breathing Air Catalog [PDF]
Great things. Small packages.
The JUNIOR II and OCEANUS come with an air purification system and fill hose, and they are safe, reliable, 3-stage compressors designed for serious sport divers.
Available in single-phase 115/230 VAC and 3-phase 230/460 VAC electric motor, gasoline, or diesel engine drive.
PRESSURE:
- Up to 5000 PSIG (345 BAR)
CHARGING RATE:
- 2.9 to 4.9 SCFM (82 to 139 L/MIN)
POWER:
- 1.5 to 6 HP (1.1 to 4.5 kW)

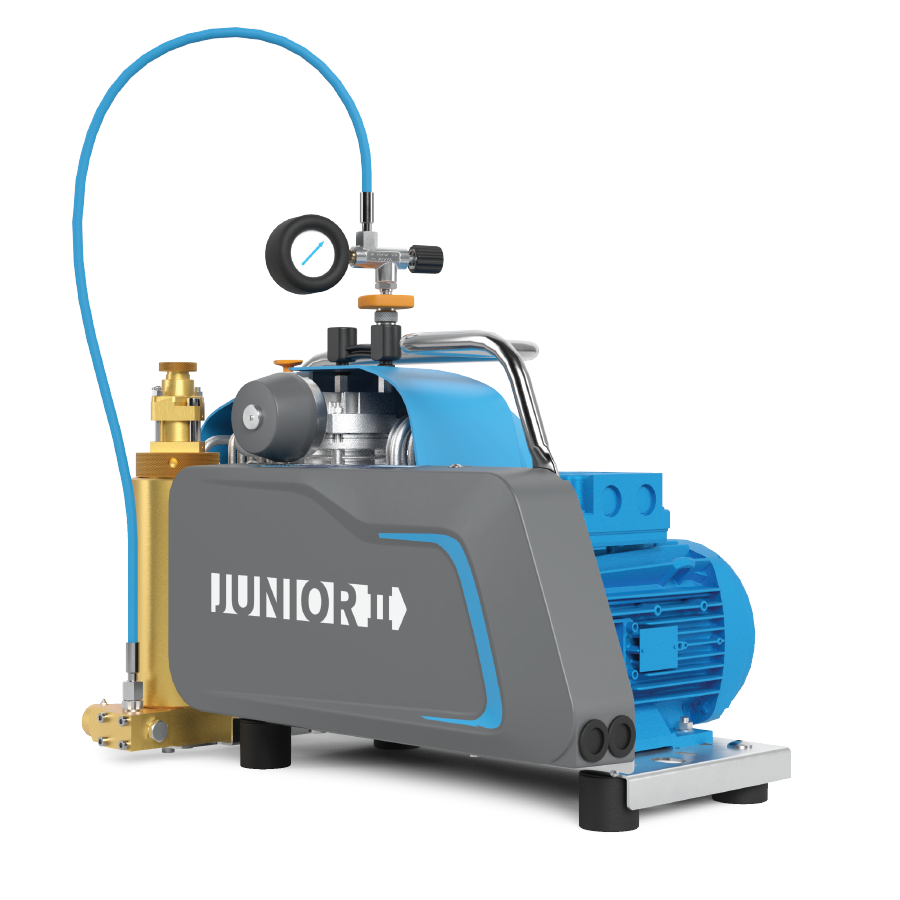

JUNIOR II
|
|
SYSTEM FOOTPRINTDimentions L x W x H inches (mm)JRII-E1/E3
JRII-GK
JRII-EY
Weight pounds (kg)
|

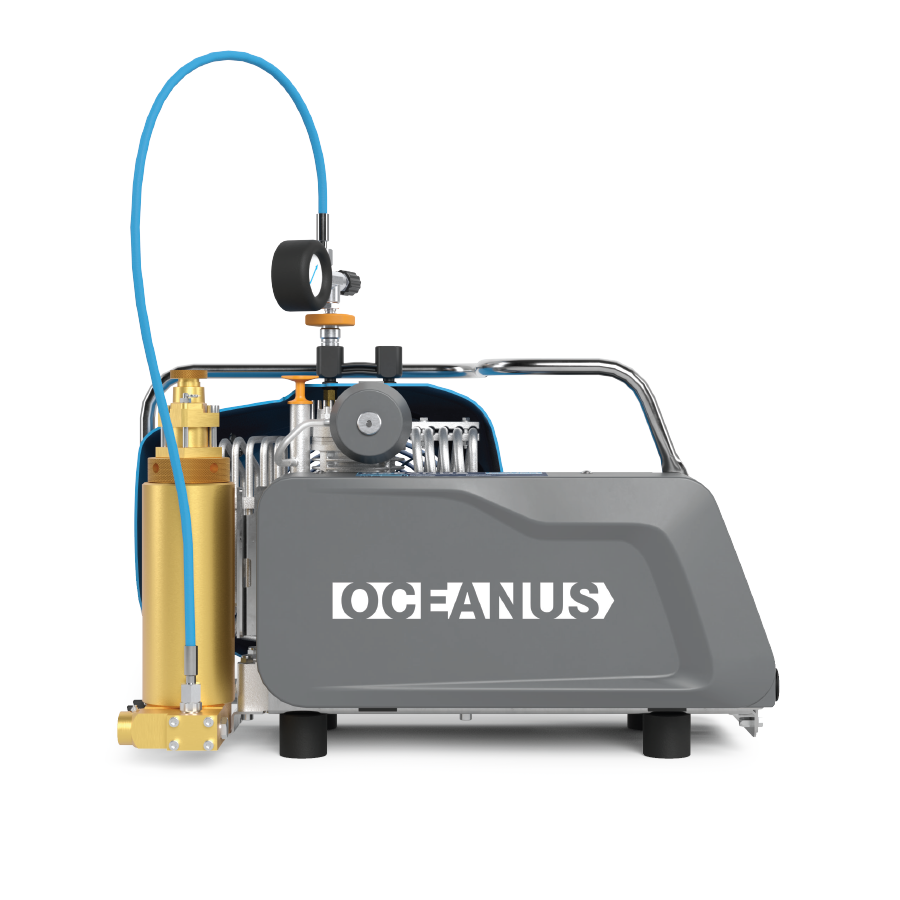

OCEANUS
 |
SYSTEM FOOTPRINTDimentions L x W x H inches (mm)OCEANUS-E1/E3
OCEANUS-GK
OCEANUS-EY
Weight pounds (kg)
|
TECHNICAL DATA
| Model | Charging Rate1 | Number of Stages | Motor | FAD2 | RPM | Purification System | ||
|---|---|---|---|---|---|---|---|---|
| SCFM | l/min | HP | kW | |||||
| JUNIOR II 5000 PSIG (345 BAR) | ||||||||
| JRII-E1/115 | 2.9 | 82 | 3 | 2 | 1.5 | 2.5 | 1500 | P0 |
| JRII-E1 | 3.9 | 110 | 3 | 3 | 2.2 | 3.2 | 2100 | P0 |
| JRII-E3 | 3.9 | 110 | 3 | 3 | 2.2 | 3.2 | 2100 | P0 |
| JRII-GK | 4.3 | 122 | 3 | 6 | 4.5 | 3.6 | 2300 | P0 |
| JUNIOR II YACHTING PACKAGE | ||||||||
| JRII-E1Y/115 | 2.9 | 82 | 3 | 2 | 1.5 | 2.5 | 1500 | P0 |
| JRII-E1Y | 3.9 | 110 | 3 | 3 | 2.2 | 3.2 | 2100 | P0 |
| JRII-E3Y | 3.9 | 110 | 3 | 3 | 2.2 | 3.2 | 2100 | P0 |
| OCEAN 5000 PSIG (345 BAR) | ||||||||
| OCEANUS-E1 | 4.9 | 139 | 3 | 5 | 3.7 | 4.1 | 2150 | P0 |
| OCEANUS-E3 | 4.9 | 139 | 3 | 5 | 3.7 | 4.1 | 2150 | P0 |
| OCEANUS-GK | 4.9 | 139 | 3 | 6 | 4.5 | 4.1 | 2150 | P0 |
| OCEANUS YACHTING PACKAGE | ||||||||
| OCEANUS-E1Y | 4.9 | 139 | 3 | 5 | 3.7 | 4.1 | 2150 | P0 |
| OCEANUS-E3Y | 4.9 | 139 | 3 | 5 | 3.7 | 4.1 | 2150 | P0 |
NOTE: JRII is designed for filling an individual SCUBA or SCBA. It is neither designed nor intended for filling cascade storage systems of any kind.
1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig
2) Compressor capacity referenced to standard inlet conditions.
E1/115 = Single phase electric, 115VAC/60 Hz
E1 = Single phase electric, 230 VAC/60 Hz
E3 = Three Phase Electric, 208/230/460 VAC/60 Hz
G = Gasoline engine drive, SUBARU
D = Diesel engine drive
Y = Yachting package
Dimensions and weights are approximate and are subject to change
