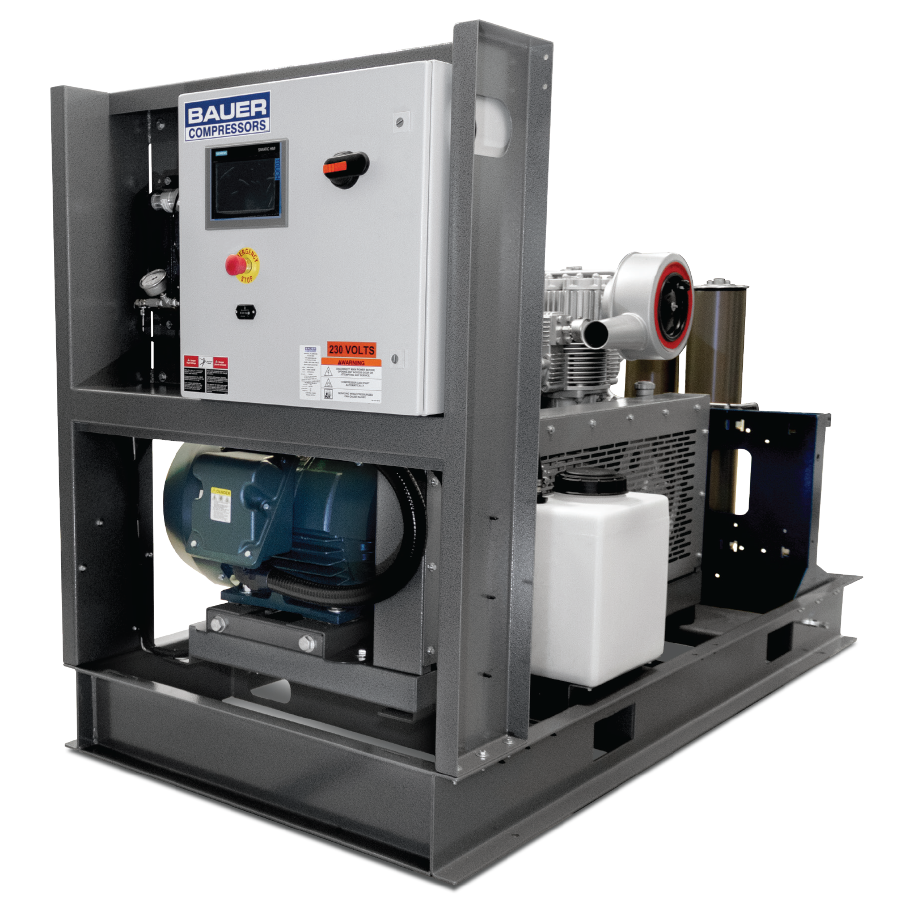

Bauer Compressors Open Design

Open packages in horizontal or vertical configurations combine compressor and air purification systems in a space saving design. These compressors set the standard for larger capacity air requirements.

Request a Quote

Breathing Air Catalog [PDF]

SYSTEM FOOTPRINT

VERTICAL

Dimentions L x W x H inches (mm)

K42V/H35V: 65” x 42” x 75” (1667mm x 1051mm x 1905mm)

Weight pounds (kg)

1200-2800 (544-1270)

HORIZONTAL

Dimentions L x W x H inches (mm)

K42/H35: 95” x 44” x 61” (2413mm x 1117mm x 1549.4mm)
K60: 92” x 44” x 61” (2337mm x 1117mm x 1549.4mm)
K80/K145: 116” x 84” x 67” (2946.4mm x 2134mm x 1702mm)

Weight pounds (kg)

1200-5000 (544-2268)

AVAILABLE ACCESSORIES (FACTORY INSTALLED)

Purification Upgrade
CO Monitor
SECURUS
Interstage pressure gauges (locally mounted)
Air Storage and Containment Fill Stations allow for customization to meet specific requirements

TECHNICAL DATA

Model	Charging Rate¹		Number of Stages	Motor		FAD²	RPM	Purification System
	SCFM	l/min		HP	kW
5000 PSIG (345 BAR)
K42V-E3³	42	1190	4	30	22	35	1300	P10 B-SECURUS
K42-E3³	42	1190	4	30	22	35	1300	P10 B-SECURUS
K60-E3	60	1700	4	40	30	50	1350	P12 B-SECURUS
K80-E3	80.4	2277	4	60	45	67	1225	P14 B-SECURUS
K145-E3	145	4106	4	100	75	121	1125	P14 B-SECURUS
6000 PSIG (414 BAR)
H35V-E3	35.9	1017	4	30	22	29.8	1200	P10 B-SECURUS
H35-E3	35.9	1017	4	30	22	29.8	1200	P10 B-SECURUS
H80-E3	80.4	2277	5	60	45	67	1180	2x P10 B-SECURUS
H96-E3	96	2718	5	75	56	80	1100	2x P10 B-SECURUS

1) Based on recharging an 80 cubic foot tank from 500 to 3000 psig.
2) Compressor capacity referenced to standard inlet conditions.
3) SECURUS electronic moisture monitoring is not standard.

E3=Three phase electric, 208 VAC/60 Hz. Other voltages available on request.
KV/HV = VERTICAL
K/H = HORIZONTAL

Dimensions and weight are approximate and are subject to change.
