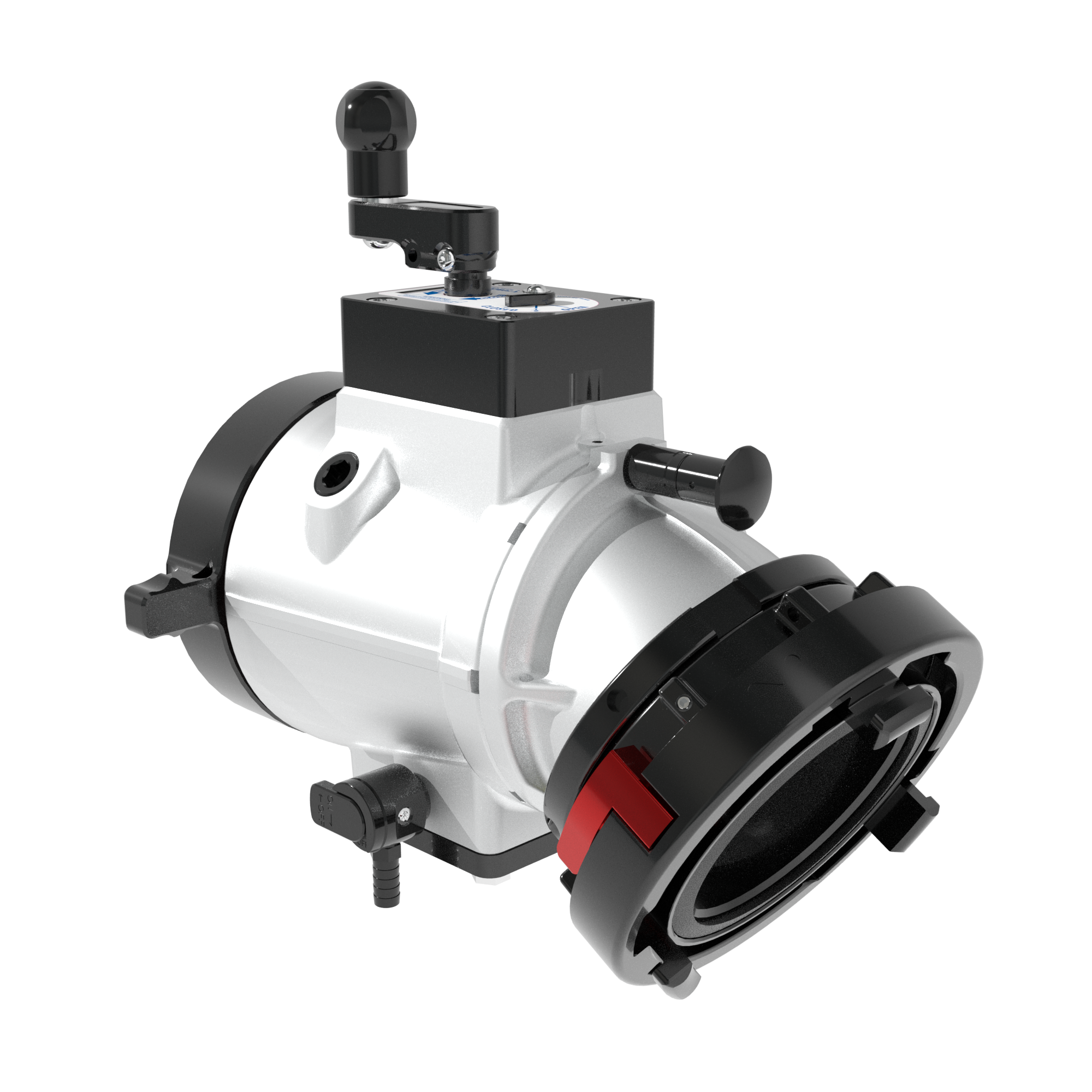

Jumbo Intake Valve, Top Crank Controls – 5″ Storz Rigid Street-Side, 6″ NHF Swivel Truck-Side
$2,302.95
Best-In-Class Flow Rates
Jumbo Ball Intake Valves are designed for high-flow firefighting operations, offering reliable water delivery in demanding situations. Featuring manual and remote control options, these valves accommodate both straight and swiveling elbow designs for optimal maneuverability and hose connection. With various Storz and NH thread configurations, the Jumbo Ball Intake Valves ensure seamless integration into a wide range of apparatus setups. The inclusion of an optional pressure relief valve adds a layer of safety, while their rugged construction provides long-lasting durability in harsh conditions. Key Features: High-Flow Design: Engineered to handle large water volumes, ideal for high-demand firefighting operations. Straight and Swiveling Elbow Options: Available in both straight and swiveling elbow styles to improve connection flexibility. Top Crank and Handwheel Controls: Choose between manual top crank or right-handwheel controls for easy operation and water flow management. Storz and NH Thread Compatibility: Compatible with a wide range of Storz and NH thread configurations for versatile apparatus integration. Pressure Relief Valve: Optional pressure relief valve helps maintain safe system pressure and prevents overpressure issues. Durable Construction: Built from high-quality materials to withstand extreme conditions and ensure long-lasting performance. Remote Control Option: Available in remote-control versions for enhanced operational flexibility. All Prices in USD
Lead Time: 3–4 weeks minimum
Description
The Task Force Tips Jumbo Intake Valve provides critical high-volume water management, designed for efficient supply line operations. Its robust construction facilitates consistent performance when establishing primary water sources.
- Equipped with a 5.25″ waterway and a Jumbo valve, it optimizes flow to minimize friction loss during high-capacity water delivery.
- The 5″ Storz rigid inlet offers a rapid, secure street-side connection, while the 6″ NHF swivel outlet on the truck side allows for flexible, kink-free hookups to the pump intake.
- Direct water control is facilitated by the easily accessible Top Crank and Manual Crank style, enabling responsive operation under demanding conditions.
- A swiveling elbow and bi-directional flow capability enhance operational versatility, allowing for adaptable deployment in varied fireground scenarios.
This Task Force Tips intake valve is engineered for professional use, ensuring rapid and secure water source establishment for municipal and industrial firefighting applications.
Additional information
| Color | |
|---|---|
| Shipping Box Dimensions |
18.00 × 18.00 × 14.00 in |
| Weight | |
| Valve Type | |
| Valve Control Location |
Top Crank |
| Waterway Size (Met) |
133 mm |
| Waterway Size (Imp) |
5.25" |
| Valve Control Style |
Manual Crank |
| Valve Elbow |
Swiveling |
| Valve Flow Direction |
Bi-Directional |
| Valve Inlet Count |
Single |
| Valve Inlet Size (Imp) |
5" |
| Valve Inlet Size (Met) |
125 mm |
| Valve Inlet Type |
Storz |
| Valve Inlet Style |
Quick-Connect |
| Valve Inlet Swivel |
Rigid |
| Valve Outlet Count |
Single |
| Valve Outlet Size (Imp) |
6" |
| Valve Outlet Size (Met) |
150 mm |
| Valve Outlet Type |
NH Female |
| Valve Outlet Style |
Handles |
| Valve Outlet Swivel |
Swivel |
Document Attachments
Technical Specifications and Drawings
- AZ1ST-NX-PS Item Specification
- AZ1ST-NX-PS Finished Good Print
- Parts List: Jumbo Ball Intake Valve – AP, AQ, AX, & AZ Series
