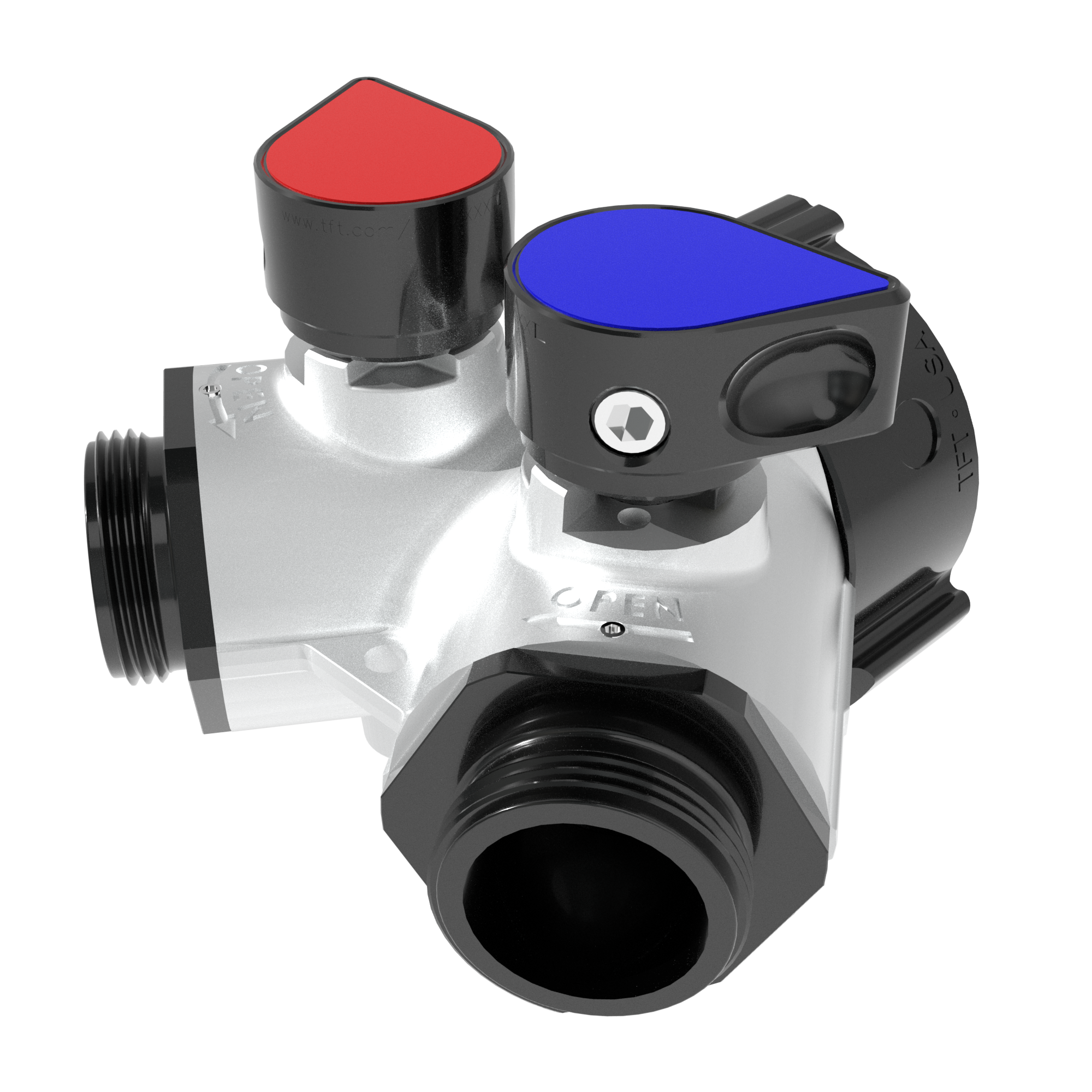

Gated Wye Quarter Turn Valve – Single 2.5″ NHF Swivel Rocker Inlet, Double 1.5″ NHM Rigid Outlets, Silver
$471.25
Split Water Supply Lines with Precision
2.5″ (65 mm) female swivel inlet x two 1.5″ (38 mm) male outlets. Quarter-turn aluminum ball valves provide a positive shutoff. Full flow 1.5″ (38mm) ball waterway. Rugged lightweight aluminum alloy casting with durable powder coat finish inside and out, hard coat anodized couplings, and super tough short handles. 2.5″ NH female swivel rocker lug inlet coupling is standard. All Prices in USD
The Task Force Tips Gated Wye Quarter Turn Valve provides essential control for managing water flow on the fireground. Engineered to split a single 2.5″ NHF supply line into two independent 1.5″ NHM attack lines, this valve enables operators to quickly extend firefighting capabilities from a single source.
- Rapid Deployment: The single 2.5″ NHF swivel rocker inlet ensures swift, tangle-free hose connection, while the unit’s light 4.900 lbs weight facilitates quick positioning.
- Precise Flow Management: Individual manual quarter-turn top handles offer immediate shutoff capability and precise control over each 1.5″ outlet, enhancing operational flexibility.
- Secure Connections: Double 1.5″ NHM rigid outlets provide stable attachment points for attack lines, minimizing movement and ensuring reliable water delivery.
- Robust Construction: Designed with bi-directional flow capability, this Task Force Tips valve is built for dependable performance under demanding conditions.
This versatile Gated Wye valve is ideal for municipal and industrial applications requiring efficient water distribution and immediate control at the point of operation. Its design directly supports dynamic fireground tactics by improving resource allocation and firefighter safety.
| Weight | 4.9 lbs |
|---|---|
| Color | |
| Shipping Box Dimensions |
14.00 × 8.00 × 8.00 in |
| Weight | |
| Shutoff Capability |
Yes |
| Valve Type | |
| Valve Control Location |
Top Handles |
| Valve Control Style |
Manual Quarter Turn |
| Valve Flow Direction |
Bi-Directional |
| Valve Inlet Count |
Single |
| Valve Inlet Size (Imp) |
2.5" |
| Valve Inlet Size (Met) |
65 mm |
| Valve Inlet Type |
NH Female |
| Valve Inlet Style |
Rocker |
| Valve Inlet Swivel |
Swivel |
| Valve Outlet Count |
Double |
| Valve Outlet Size (Imp) |
1.5" |
| Valve Outlet Size (Met) |
38 mm |
| Valve Outlet Type |
NH Male |
| Valve Outlet Style |
Male Threads |
| Valve Outlet Swivel |
Rigid |
