Jumbo Intake Valve, Top Crank Controls, Swiveling Elbow – 4″ NHM Rigid Street-Side, 6″ NHF Swivel Truck-Side, Pressure Relief Valve
$2,835.30
Best-In-Class Flow Rates
Jumbo Ball Intake Valves are designed for high-flow firefighting operations, offering reliable water delivery in demanding situations. Featuring manual and remote control options, these valves accommodate both straight and swiveling elbow designs for optimal maneuverability and hose connection. With various Storz and NH thread configurations, the Jumbo Ball Intake Valves ensure seamless integration into a wide range of apparatus setups. The inclusion of an optional pressure relief valve adds a layer of safety, while their rugged construction provides long-lasting durability in harsh conditions. Key Features: High-Flow Design: Engineered to handle large water volumes, ideal for high-demand firefighting operations. Straight and Swiveling Elbow Options: Available in both straight and swiveling elbow styles to improve connection flexibility. Top Crank and Handwheel Controls: Choose between manual top crank or right-handwheel controls for easy operation and water flow management. Storz and NH Thread Compatibility: Compatible with a wide range of Storz and NH thread configurations for versatile apparatus integration. Pressure Relief Valve: Optional pressure relief valve helps maintain safe system pressure and prevents overpressure issues. Durable Construction: Built from high-quality materials to withstand extreme conditions and ensure long-lasting performance. Remote Control Option: Available in remote-control versions for enhanced operational flexibility. All Prices in USD

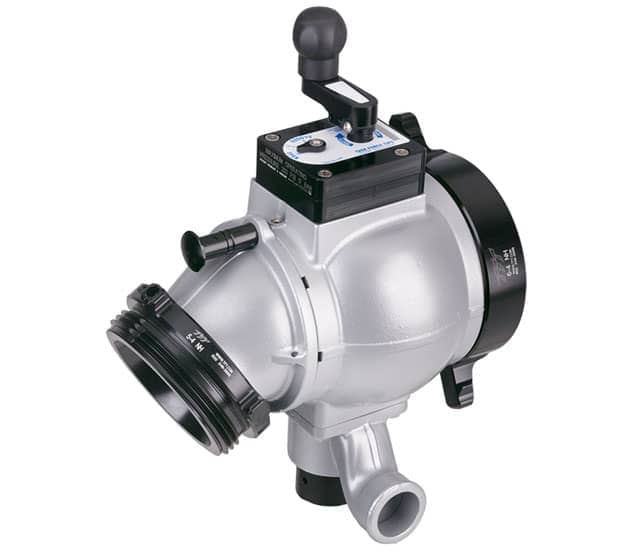

The Task Force Tips Jumbo Intake Valve is engineered for efficient, high-volume water transfer to firefighting apparatus. Featuring Top Crank Controls and a Swiveling Elbow, it provides critical connection and flow management from a municipal or industrial water source.
- The substantial 5.25″ (133 mm) waterway ensures maximum flow rates and minimal friction loss, crucial for supplying large-capacity pumps.
- With a 4″ NHM Rigid Street-Side inlet and 6″ NHF Swivel Truck-Side outlet, coupled with a swiveling elbow, the valve facilitates flexible hose alignment and rapid, secure apparatus setup.
- Manual Top Crank Controls offer reliable and positive valve operation, providing firefighters direct command over water intake or discharge.
- An integrated Pressure Relief Valve (PRV) with a bottom mount delivers essential over-pressurization protection for the supply line and connected apparatus.
- Designed for bi-directional flow, this intake valve offers increased operational versatility for various intake or discharge applications on the fireground.
This robust 25.300 lbs valve is ideal for municipal fire departments and industrial brigades requiring reliable large-diameter hose connections. Its design prioritizes operational efficiency and safety, facilitating swift and controlled water supply under demanding conditions.
| Color | |
|---|---|
| Weight | |
| Valve Type | |
| Valve Control Location |
Top Crank |
| Valve PRV Style |
Plain Outlet |
| Valve PRV Location |
Bottom Mount |
| Waterway Size (Met) |
133 mm |
| Waterway Size (Imp) |
5.25" |
| Valve Control Style |
Manual Crank |
| Valve Elbow |
Swiveling |
| Valve Flow Direction |
Bi-Directional |
| Valve Inlet Count |
Single |
| Valve Inlet Size (Imp) |
4" |
| Valve Inlet Size (Met) |
100 mm |
| Valve Inlet Type |
NH Male |
| Valve Inlet Style |
Male Threads |
| Valve Inlet Swivel |
Rigid |
| Valve Outlet Count |
Single |
| Valve Outlet Size (Imp) |
6" |
| Valve Outlet Size (Met) |
150 mm |
| Valve Outlet Type |
NH Female |
| Valve Outlet Style |
Handles |
| Valve Outlet Swivel |
Swivel |
