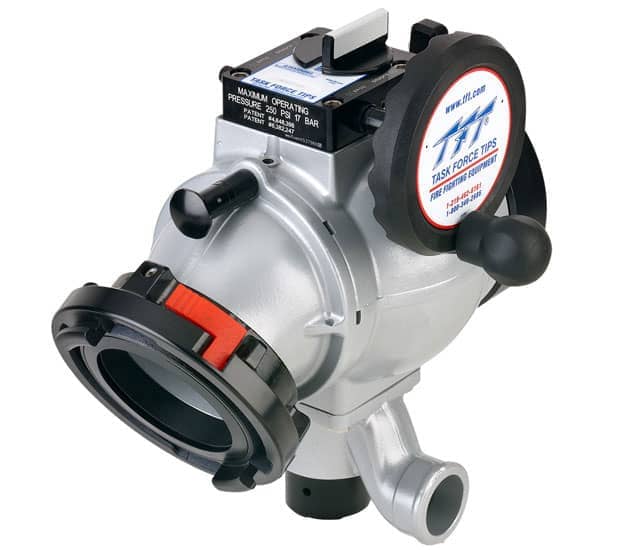

Jumbo Intake Valve, Right Handwheel Controls, Swiveling Elbow – 6″ Storz Rigid Street-Side, 6″ NHF Swivel Truck-Side, Pressure Relief Valve
$2,507.70
Best-In-Class Flow Rates
Jumbo Ball Intake Valves are designed for high-flow firefighting operations, offering reliable water delivery in demanding situations. Featuring manual and remote control options, these valves accommodate both straight and swiveling elbow designs for optimal maneuverability and hose connection. With various Storz and NH thread configurations, the Jumbo Ball Intake Valves ensure seamless integration into a wide range of apparatus setups. The inclusion of an optional pressure relief valve adds a layer of safety, while their rugged construction provides long-lasting durability in harsh conditions. Key Features: High-Flow Design: Engineered to handle large water volumes, ideal for high-demand firefighting operations. Straight and Swiveling Elbow Options: Available in both straight and swiveling elbow styles to improve connection flexibility. Top Crank and Handwheel Controls: Choose between manual top crank or right-handwheel controls for easy operation and water flow management. Storz and NH Thread Compatibility: Compatible with a wide range of Storz and NH thread configurations for versatile apparatus integration. Pressure Relief Valve: Optional pressure relief valve helps maintain safe system pressure and prevents overpressure issues. Durable Construction: Built from high-quality materials to withstand extreme conditions and ensure long-lasting performance. Remote Control Option: Available in remote-control versions for enhanced operational flexibility. All Prices in USD
The Task Force Tips Jumbo Intake Valve is purpose-built for efficient, high-volume water intake operations. This robust assembly provides a critical, controlled connection point between primary water sources and apparatus, ensuring reliable supply.
- Rapid Supply Connection: The 6″ Storz quick-connect rigid inlet facilitates swift and secure attachment to municipal or industrial supply lines.
- Flexible Apparatus Hookup: A 6″ NHF swivel truck-side outlet allows for easy hose alignment, minimizing strain and speeding up apparatus connection.
- Enhanced Operational Positioning: The swiveling elbow and bi-directional flow capability provide significant versatility in positioning, adapting to diverse fireground layouts.
- Equipment Protection: An integrated pressure relief valve, bottom-mounted for plain outlet discharge, safeguards connected apparatus and hose lines from sudden pressure spikes.
- Precise Flow Management: Control is managed through a manual right handwheel, offering direct and responsive regulation of water intake.
Weighing 34 pounds with a 5.25″ (133 mm) waterway, this Task Force Tips intake valve is designed to manage substantial water transfer. It is an indispensable component for fire departments and industrial facilities requiring a reliable, controlled link for their large-diameter hose operations.
| Color | |
|---|---|
| Shipping Box Dimensions |
18.00 × 18.00 × 14.00 in |
| Weight | |
| Valve Type | |
| Valve Control Location |
Right Handwheel |
| Valve PRV Style |
Plain Outlet |
| Valve PRV Location |
Bottom Mount |
| Waterway Size (Met) |
133 mm |
| Waterway Size (Imp) |
5.25" |
| Valve Control Style |
Manual Handwheel |
| Valve Elbow |
Swiveling |
| Valve Flow Direction |
Bi-Directional |
| Valve Inlet Count |
Single |
| Valve Inlet Size (Imp) |
6" |
| Valve Inlet Size (Met) |
150 mm |
| Valve Inlet Type |
Storz |
| Valve Inlet Style |
Quick-Connect |
| Valve Inlet Swivel |
Rigid |
| Valve Outlet Count |
Single |
| Valve Outlet Size (Imp) |
6" |
| Valve Outlet Size (Met) |
150 mm |
| Valve Outlet Type |
NH Female |
| Valve Outlet Style |
Handles |
| Valve Outlet Swivel |
Swivel |
Technical Specifications and Drawings
- AX1SX-NX Item Specification
- AX1SX-NX Finished Good Print
- Parts List: Jumbo Ball Intake Valve – AP, AQ, AX, & AZ Series
