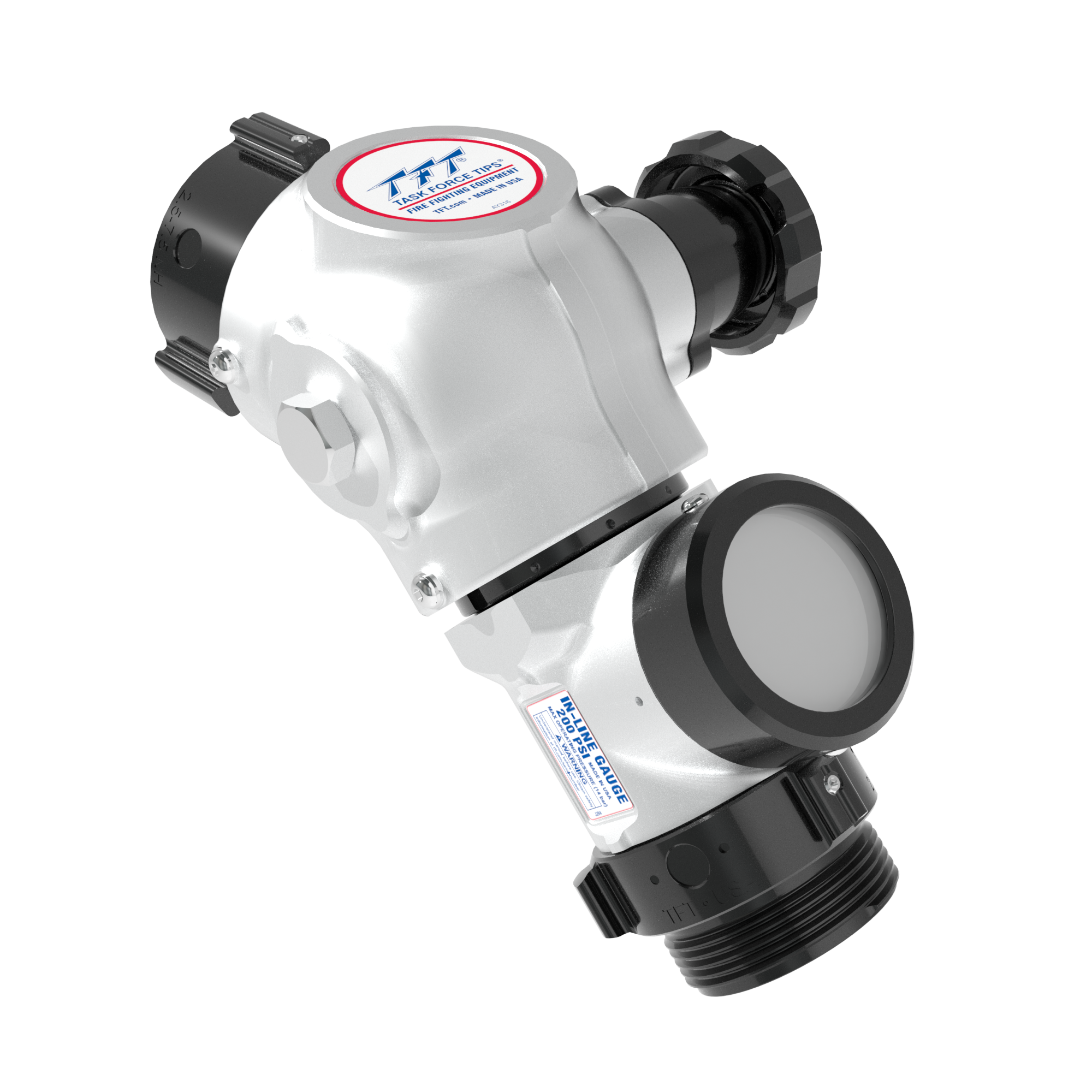

HI RISE VALVE 45 DEG RIGHT W/ GAUGE
$1,421.55
SLOW CLOSE 0-200 PSI/BAR
TFT’s 45-degree standpipe waterway with a right-handle slow close valve, has a full 2.5” (65 mm) waterway for maximum flow with minimal friction loss. The valve handle is on the right side of the waterway and includes a position indicator, which identifies open and close positions. The slow close valve prevents water hammer and allows fine-tuning of the water supply exiting the standpipe. The waterway includes an air bleeder and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar). The inlet valve body of the waterway swivels 360 degrees before tightening and the body of the inline pressure gauge always swivels 360 degrees for easy connection. The 45-degree angle allows for adaptable installation and it positions the attack hose to prevent kinks. All Prices in USD
The Task Force Tips HI RISE VALVE 45 DEG RIGHT W/ GAUGE is a specialized aluminum ball valve engineered for efficient standpipe operations. Its integrated pressure gauge and distinct 45-degree right-angle design facilitate optimal hose deployment and vital flow monitoring in challenging high-rise or industrial environments.
- The valve’s 45-degree right orientation and 2.5″ (65 mm) NH connections streamline hose routing in confined spaces, while a full-time swivel on the 2.5″ NH Female Side A ensures rapid, kink-free connection to standpipe outlets.
- An integrated gauge provides immediate pressure feedback, critical for maintaining safe and effective water delivery during fireground operations.
- Constructed from durable aluminum with a Stardust Silver finish, this ball valve weighs just 9.150 lbs, offering robust performance without excessive bulk.
- The manual ball valve design delivers precise flow control and reliable shut-off, allowing firefighters to manage water flow with confidence.
- Standardized 2.5″ (65 mm) NH connections on both the Female rocker lug inlet and Male threaded outlet ensure broad compatibility with existing firefighting hose lines and equipment.
This Task Force Tips valve is an essential component for effective standpipe management, providing the control, pressure visibility, and connection flexibility necessary for successful water delivery in vertical attack scenarios and other demanding fire protection applications.
| Shipping Box Dimensions |
14.00 × 11.00 × 6.00 in |
|---|---|
| Weight | |
| Valve Design | |
| Finish | |
| Coupling Size Side A | |
| Coupling Swivel Side A | |
| Material | |
| Coupling Swivel Side B | |
| Connection Type Side B | |
| Coupling Style Side A | |
| Size | |
| Operation Energy Source | |
| Connection Type Side A | |
| Coupling Size Side B | |
| Coupling Style Side B |
Technical Specifications and Drawings
Instructions For Installation, Safe Operation and Maintenance
- In-Line Pivot Gage and In-Line Gage Manual
- MANUAL: IN-LINE GAUGE WITH VALVE IN-LINE PIVOTING GAUGE WITH VALVE IN-LINE GAUGE WITH 45° VALVE
- Analog In-Line Gauge Series Manual
- Analog In-Line Gauge Series Manual
