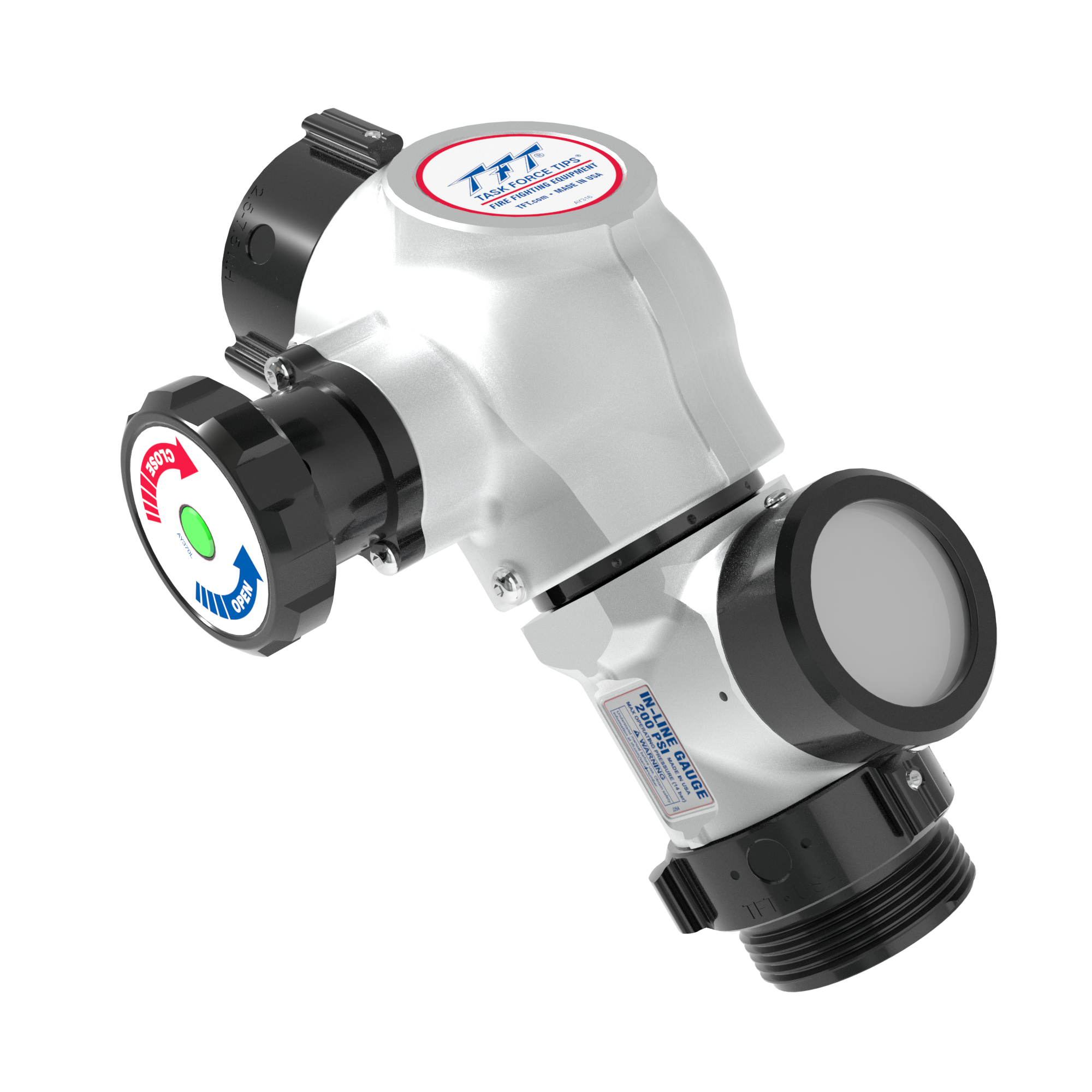

HI RISE VALVE 45 DEG LEFT W/ GAUGE
$1,421.55
SLOW CLOSE 0-200 PSI/BAR
TFT’s 45-degree standpipe waterway with a left-handle slow close valve, has a full 2.5” (65 mm) waterway for maximum flow with minimal friction loss. The valve handle is on the left side of the waterway and includes a position indicator, which identifies open and close positions. The slow close valve prevents water hammer and allows fine-tuning of the water supply exiting the standpipe. The waterway includes an air bleeder and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar). The inlet valve body of the waterway swivels 360 degrees before tightening and the body of the inline pressure gauge always swivels 360 degrees for easy connection. The 45-degree angle allows for adaptable installation and it positions the attack hose to prevent kinks. All Prices in USD
The Task Force Tips HI RISE VALVE 45 DEG LEFT W/ GAUGE is engineered for precise water flow control and pressure management during critical high-rise and standpipe operations. Its robust design ensures reliable performance when managing water supplies in demanding elevated environments.
- Efficient Hose Management: Featuring a 2.5″ (65 mm) NH Female connection with a full-time swivel and rocker style on Side A, this valve facilitates rapid, secure hose attachment and allows for easy hose positioning.
- Optimized Flow Control: The aluminum ball valve design ensures smooth, reliable manual operation for immediate water flow regulation, critical for managing varying pressures in high-rise systems.
- Integrated Pressure Monitoring: An incorporated gauge provides real-time pressure feedback, enabling operators to monitor system conditions effectively and maintain operational safety.
- Ergonomic Configuration: The 45-degree left-angled body supports optimal hose routing and enhances ergonomic handling in confined spaces, improving fireground maneuverability.
- Lightweight Durability: Constructed from aluminum, the valve weighs 9.150 lbs, offering a balance of ruggedness and ease of portability for rapid deployment without compromising structural integrity.
This Task Force Tips valve is an essential component for municipal and industrial fire departments requiring dependable control and clear pressure indication during complex standpipe water delivery scenarios. Its design priorities are rapid deployment and operational integrity.
| Shipping Box Dimensions |
20.00 × 12.00 × 12.00 in |
|---|---|
| Weight | |
| Valve Design | |
| Finish | |
| Coupling Size Side A | |
| Coupling Swivel Side A | |
| Material | |
| Coupling Swivel Side B | |
| Connection Type Side B | |
| Coupling Style Side A | |
| Size | |
| Operation Energy Source | |
| Connection Type Side A | |
| Coupling Size Side B | |
| Coupling Style Side B |
Technical Specifications and Drawings
Instructions For Installation, Safe Operation and Maintenance
- In-Line Pivot Gage and In-Line Gage Manual
- MANUAL: IN-LINE GAUGE WITH VALVE IN-LINE PIVOTING GAUGE WITH VALVE IN-LINE GAUGE WITH 45° VALVE
- Analog In-Line Gauge Series Manual
- Analog In-Line Gauge Series Manual
