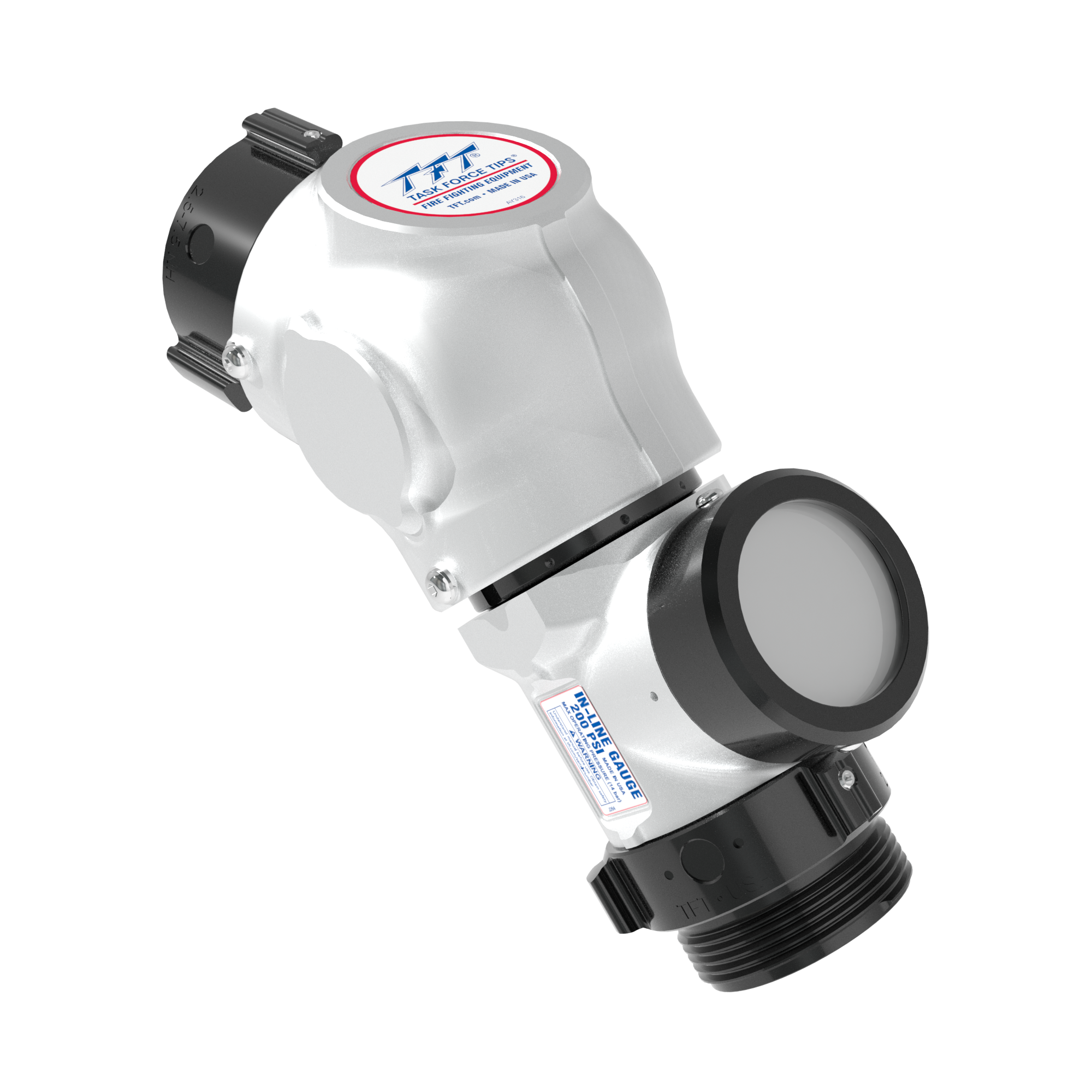

HI RISE 45 DEG ELBOW W/ GAUGE
$1,634.10
NO VALVE 0-200 PSI/BAR FIXED OUTLET
TFT’s 45-degree standpipe waterway with no valve, has a full 2.5” (65 mm) waterway that results in maximum flow rate with minimal friction loss. The waterway includes an air bleeder and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar). The inlet body of the waterway swivels 360 degrees before tightening and the body of the inline pressure gauge always swivels 360 degrees to fit the widest variety of standpipe connections. The 45-degree angle allows for adaptable installation and it positions the attack hose to prevent kinks. All Prices in USD
The Task Force Tips HI RISE 45 DEG ELBOW W/ GAUGE is a specialized 2.5″ (65 mm) aluminum fitting engineered for critical pressure monitoring and efficient hose line management. Its 45-degree design provides essential angular redirection, enhancing water delivery in high-rise or complex structural firefighting operations.
- With an integrated gauge, it provides immediate, vital pressure readings at the connection point, crucial for optimizing flow to attack lines.
- The 45-degree angle facilitates superior hose routing, reducing kinking in tight stairwells or congested fireground areas for enhanced operational flexibility.
- Constructed from durable aluminum and weighing just 7.750 lbs, this fitting offers portability and ease of handling during rapid deployment.
- Features 2.5″ (65 mm) NH Female (Rocker) and NH Male (Rigid) connections, ensuring broad compatibility with standard standpipe outlets and hose lines.
- Its valveless design streamlines the water path, promoting maximum flow and minimizing potential failure points on the fireground.
The HI RISE 45 DEG ELBOW W/ GAUGE is essential for standpipe operations, urban interface, or any scenario demanding precise pressure monitoring and adaptable hose configurations. This robust Task Force Tips design provides firefighters a reliable, practical solution for managing water flow effectively in challenging environments.
| Shipping Box Dimensions |
14.00 × 11.00 × 6.00 in |
|---|---|
| Weight | |
| Connection Type Side A | |
| Material | |
| Coupling Swivel Side B | |
| Connection Type Side B | |
| Valve Design | |
| Coupling Style Side A | |
| Coupling Size Side B | |
| Coupling Swivel Side A | |
| Coupling Size Side A | |
| Finish | |
| Coupling Style Side B | |
| Operation Energy Source | |
| Size |
Technical Specifications and Drawings
Instructions For Installation, Safe Operation and Maintenance
- In-Line Pivot Gage and In-Line Gage Manual
- Analog In-Line Gauge Series Manual
- Analog In-Line Gauge Series Manual
