Jumbo Intake Valve, Right Handwheel Controls, Straight Elbow – 6″ NHM Rigid Street-Side, 6″ NHF Swivel Truck-Side
$2,516.15
Best-In-Class Flow Rates
Jumbo Ball Intake Valves are designed for high-flow firefighting operations, offering reliable water delivery in demanding situations. Featuring manual and remote control options, these valves accommodate both straight and swiveling elbow designs for optimal maneuverability and hose connection. With various Storz and NH thread configurations, the Jumbo Ball Intake Valves ensure seamless integration into a wide range of apparatus setups. The inclusion of an optional pressure relief valve adds a layer of safety, while their rugged construction provides long-lasting durability in harsh conditions. Key Features: High-Flow Design: Engineered to handle large water volumes, ideal for high-demand firefighting operations. Straight and Swiveling Elbow Options: Available in both straight and swiveling elbow styles to improve connection flexibility. Top Crank and Handwheel Controls: Choose between manual top crank or right-handwheel controls for easy operation and water flow management. Storz and NH Thread Compatibility: Compatible with a wide range of Storz and NH thread configurations for versatile apparatus integration. Pressure Relief Valve: Optional pressure relief valve helps maintain safe system pressure and prevents overpressure issues. Durable Construction: Built from high-quality materials to withstand extreme conditions and ensure long-lasting performance. Remote Control Option: Available in remote-control versions for enhanced operational flexibility. All Prices in USD

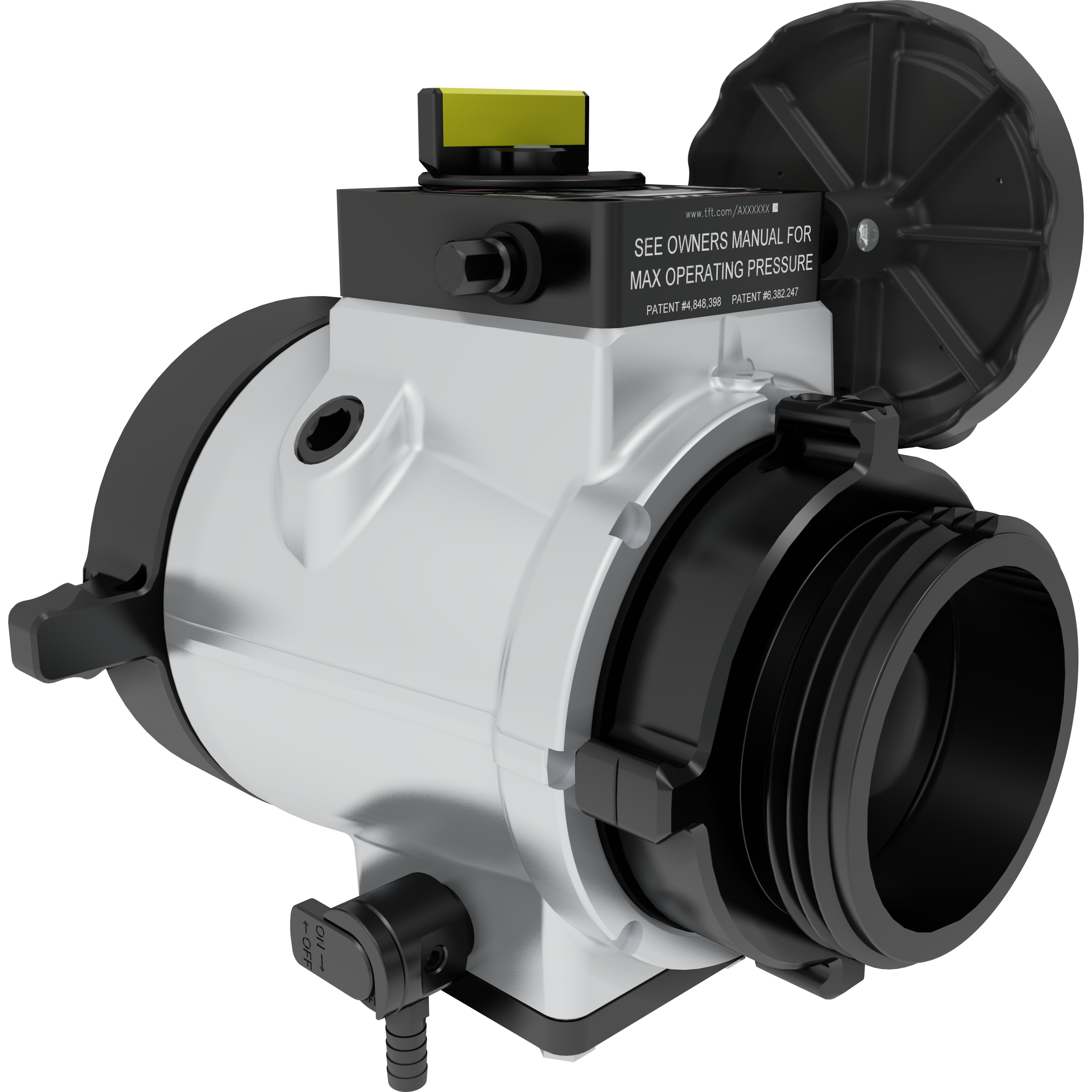

The Task Force Tips Jumbo Intake Valve is precision-engineered to manage high-volume water intake, serving as a critical control point for large-diameter hose applications from a static water source to apparatus. Its straight elbow design ensures a direct and efficient flow path, minimizing resistance during critical operations.
- Delivers exceptional water flow capability through its robust 5.25-inch (133 mm) internal waterway, supporting the most demanding fireground operations with consistent supply.
- Offers precise, responsive water control via the strategically positioned right-hand manual handwheel, allowing for deliberate and effective flow management.
- Facilitates rapid and secure connections with a rigid 6-inch NH male street-side inlet and a 6-inch NH female swivel truck-side outlet, enhancing deployment flexibility while accommodating bi-directional flow.
- Designed for robust service in challenging environments, this Task Force Tips valve weighs 25.000 lbs and maintains a compact footprint (10.40″ x 11.20″ x 13.70″), ensuring practical integration onto apparatus.
This intake valve’s design is crucial for municipal and industrial operations requiring reliable, efficient transfer of substantial water volumes. Its combination of direct control and flexible, secure connections is paramount to effective incident management and maintaining continuous water supply on the fireground.
| Color | |
|---|---|
| Weight | |
| Valve Type | |
| Valve Control Location |
Right Handwheel |
| Waterway Size (Met) |
133 mm |
| Waterway Size (Imp) |
5.25" |
| Valve Control Style |
Manual Handwheel |
| Valve Elbow |
Straight |
| Valve Flow Direction |
Bi-Directional |
| Valve Inlet Count |
Single |
| Valve Inlet Size (Imp) |
6" |
| Valve Inlet Size (Met) |
150 mm |
| Valve Inlet Type |
NH Male |
| Valve Inlet Style |
Male Threads |
| Valve Inlet Swivel |
Rigid |
| Valve Outlet Count |
Single |
| Valve Outlet Size (Imp) |
6" |
| Valve Outlet Size (Met) |
150 mm |
| Valve Outlet Type |
NH Female |
| Valve Outlet Style |
Handles |
| Valve Outlet Swivel |
Swivel |
