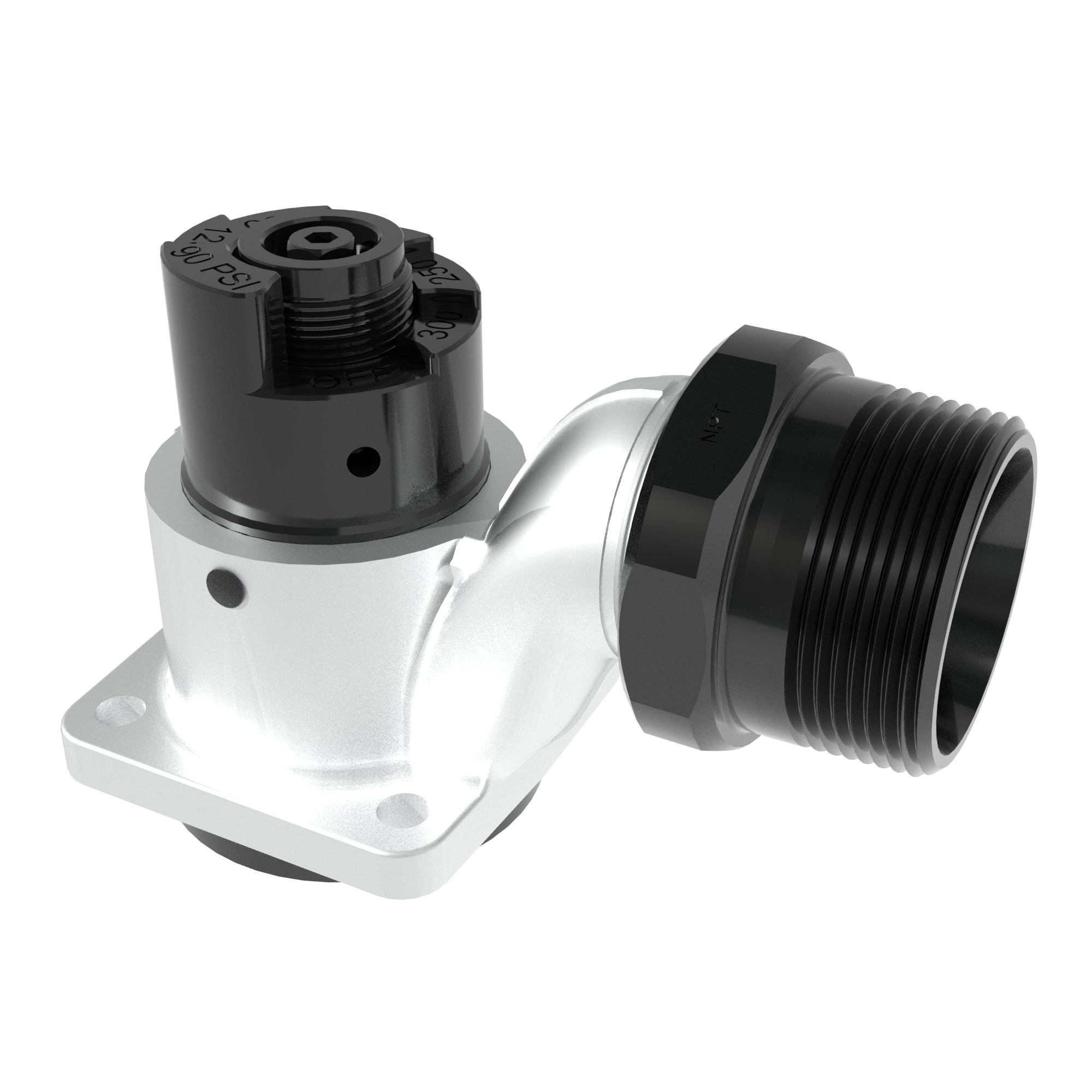

RELIEF VALVE W/2.5″NPTM ADAPTER
$360.75
W/2.5″NPT MALE EXIT THREADS
A18 Series – TFT’s PRV (pressure relief valve) operates in an adjustment range from 90 to 300 psi (6 to 21 bar) with easy to see increments of 90, 125, 150, 200, 250, and 300 psi (6, 9, 10, 14, 17 and 21 bar). Each pressure relief valve includes an OFF position. The pressure relief valve meets NFPA 1900 PRV requirements. The aluminum casting is hardcoat anodized, and TFT-powder coat finished inside and out for maximum corrosion protection. For direct use on pump flanges, the TFT pressure relief valve works with Darley, Waterous, or Hale bolt hole patterns. Relief valves are available with 2″ (52 mm) male pipe thread, 2.5″ male NH (65 mm) thread, or 2.5″ (65 mm) Victaulic® connection on the discharge spout. Available adapters include 2.5″ (65 mm) and 3″ (75 mm) NPT male and female threaded inlets for mounting the TFT pressure relief valve to plumbing. All A18 Series PRV’s come standard with an integrated galvanic isolator for maximum corrosion resistance. All Prices in USD
The RELIEF VALVE W/2.5″NPTM ADAPTER from Task Force Tips is engineered to integrate effectively into your water delivery system, providing essential pressure management. This robust valve is designed for critical applications where controlling system pressure and protecting equipment are paramount, arriving with a pre-configured 2.5″ NPT Male adapter for immediate connection.
- Weighing just 3.500 lbs, this relief valve is remarkably portable, facilitating rapid deployment and reducing handling effort on the fireground.
- The specific Waterous/Hale Bolt Pattern Inlet ensures direct and secure integration with compatible pump systems, streamlining connections without the need for additional adapters.
- Featuring a standard 2.5″ NPT Male Threads Discharge, the valve offers versatile compatibility with common hose lines and existing fire protection equipment.
- With shipping box dimensions of 10.00 × 10.00 × 6.00 in, the unit presents a compact profile, optimizing storage space on apparatus.
This Task Force Tips relief valve is a vital component for ensuring safe and controlled water flow, protecting pumps and hose lines from over-pressurization. Its design focuses on direct compatibility and ease of use, making it an indispensable tool for municipal fire departments and industrial fire brigades.
| Weight | 3.5 lbs |
|---|---|
| Shipping Box Dimensions |
10.00 × 10.00 × 6.00 in |
| Weight | |
| Inlet Type | |
| Inlet | |
| Discharge |
