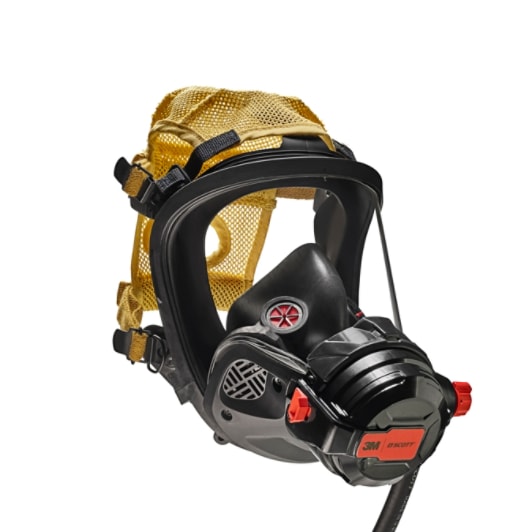

3M™ Scott™ Vision C5 Facepiece FP1S40000000000, Gen 2, 4-Strap, Kev, Small
$436.96
Designed using a platform approach, the 3M™ Scott™ Vision C5 Facepiece with E-Z Flo C5 Regulator incorporates the latest technology to help enhance situational intelligence in a customizable solution.
Est. Lead Time: 30 Working Days
Description
- Approved with 3M™ Scott™ Air-Pak™ SCBA models compliant to NFPA 1970, Standard on Protective Ensembles for Structural and Proximity Firefighting, Work Apparel, Open-Circuit Self-Contained Breathing Apparatus (SCBA) for Emergency Services, and Personal Alert Safety Systems (PASS), 2025 Edition. Also approved with select Air-Pak SCBA models compliant to earlier editions of the NFPA 1981 standard
- Wider Field of View – Helps to improve situational awareness
- Single Reflex Face Seal – Designed for enhanced comfort and fit, as well as easier donning
- Removable Head Harness – An easy-to-remove head harness aids in cleaning and serviceability and helps to provide a secure fit. Available in a 4-strap and 5-strap configuration.
- Dual Voicemitters – Enhanced voice transmission exceeds Speech Transmission Index (STI) requirements for the NFPA 1970 standard
- PPE Interface – Face seal provides wider landing area with ridges to help improve interface with protective hood
- Enhanced Breathability – Helps reduce user burden and improve operational efficiencies
- Enhanced Communications – Reduced frequency Vibralert EOSTI helps improve two-way radio communications
- Auto Air-Saver – Simplifies operation when doffing the regulator and helps to prevent inadvertent air loss during removal from the facepiece
- Expanded Heads-Up Display – Additional status icons provide visual alerts to SCBA wearer for electronic personnel accountability report (ePAR), EVAC and System Integrity Alarm (when using Air-Pak XD SCBA configured with SEMS 3.0 Wireless SCBA Telemetry or Air-Pak X3 Pro SCBA configured with SEMS II Pro Wireless SCBA Telemetry)
- External “Buddy” Lights – Assist with remote identification of a user’s SCBA air remaining
- Recessed Heads-Up Display – Helps improve downward view through facepiece
- Quarter-Turn Design – Provides secure connection to the facepiece
- Enhanced Buckle Design – For easier donning and a secure fit
- Approved with the 3M™ Scott™ X3-21 Pro SCBA, compliant to the NFPA 1986 Standard on Respiratory Protection Equipment for Tactical and Technical Operations, 2023 Edition
Additional information
| Connection Type | |
|---|---|
| Head Harness Material |
Kevlar® |
| Size |
Document Attachments
Bulletins |
|
|---|---|
Posters |
|
Brochures |
|
Technical Papers |
|
Frequently Asked Questions |
|
Catalogs |
|
Flyers |
|
Articles |
|
Data Sheets |
|
Dimensions and Classifications |
|
|---|---|
| Case Gross Weight | 3.264 US pound |
| Case Height | 8.375 Inch |
| Case Length | 9.563 Inch |
| Case Width | 8 Inch |
| Each Gross Weight | 3.264 US pound |
| Pallet Gross Weight | 443 US pound |
| Pallet Height | 46.88 Inch |
| Pallet Length | 48 Inch |
| Pallet Width | 40 Inch |
| Case Volume | 640.721 Cubic inch |
| Each Volume | 640.721 Cubic inch |
| Pallet Volume | 90,009.6 Cubic inch |
| ECCN | 1A004 |
| Harmonized Code | 9020006000 |
Packaging and Identifications |
|
|---|---|
| Country of Origin | USA |
| Country of Origin Disclaimer | This is to advise you that as of this date, the Country of Origin for the product(s) displayed is as follows. This origin is for purposes of Normal Trade Relations (NTR) duty treatment, is for import/export documentation only, and is not intended to be used for any other purpose such as sales to government entities or Free Trade Agreement eligibility. Government procurement laws and Free Trade Agreements require application of specific criteria that may result in a different Country of Origin than indicated. These determinations are specific to 3M ID. |
| per Case | 1 Each |
| per Pallet | 25 Each |
